Inpage Navigation Section: Oversigt

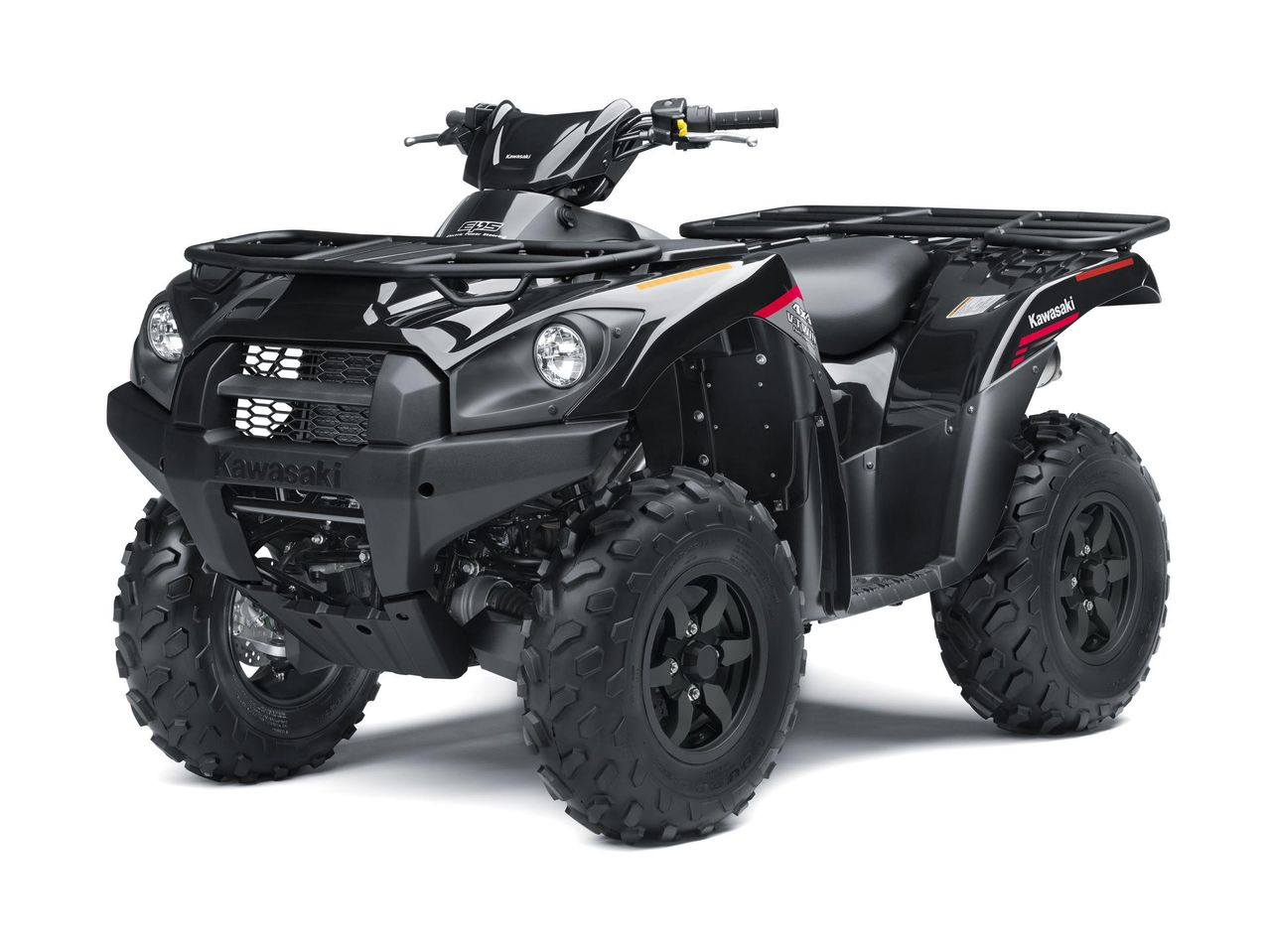

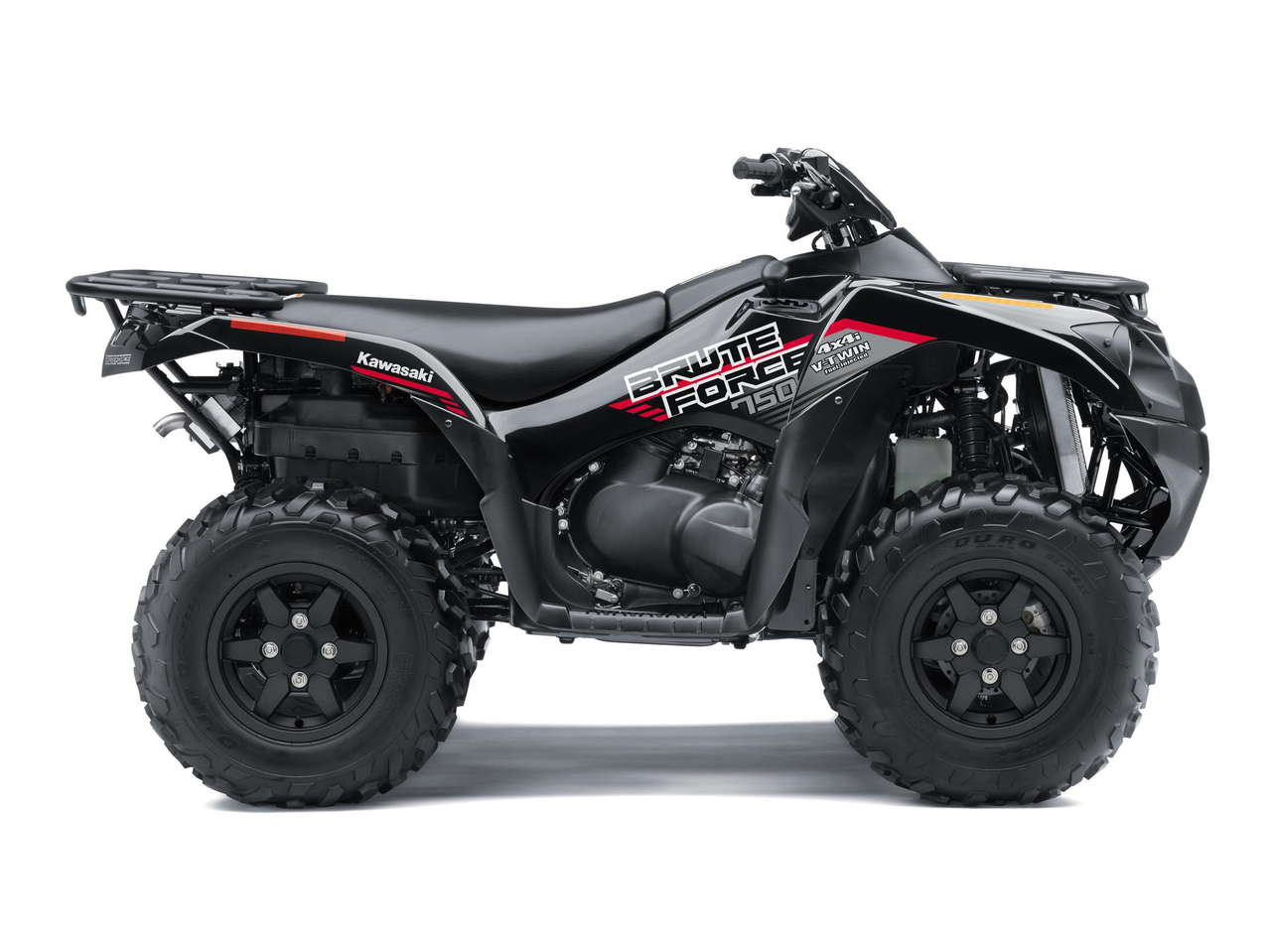

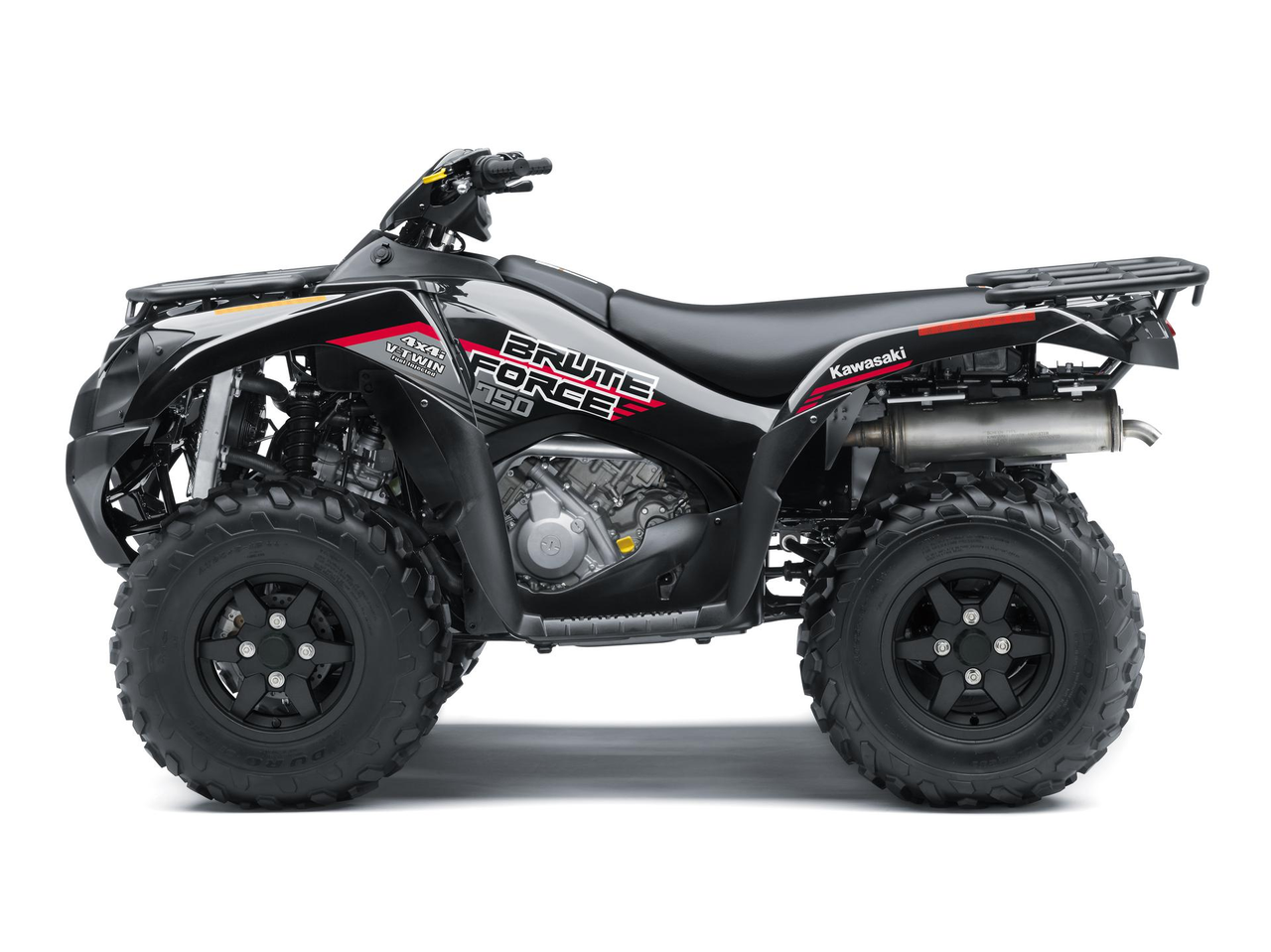

Designed for high performance off-road, the Brute Force 750 4x4i EPS boasts industry leading features including speed variable Electronic Power Steering (EPS) plus a further increase in the torque and all-day working performance of its 750 cm3 V-twin engine. Add greater chassis control, plus a host of new features, and the more you experience the Brute Force 750 4x4i EPS, the better it gets.
Farve
Show all
Show less
Inpage Navigation Section: Galleri
Inpage Navigation Section: Features & specifikationer
The BRUTE FORCE 750's muscular V-Twin, fuel injected engine churns out a hefty 37.3 kW (51PS) @ 6,750 rpm and 58.1Nm @ 4,750 rpm, giving it more than enough grunt to squeeze the most out of the enhanced chassis.
The BRUTE FORCE 750's muscular V-Twin, fuel injected engine churns out a hefty 37.3 kW (51PS) @ 6,750 rpm and 58.1Nm @ 4,750 rpm, giving it more than enough grunt to squeeze the most out of the enhanced chassis.
Kawasaki's unique fully-enclosed wet multi-plate rear braking system keeps the mud out and the stopping power in. It is highly compact and well protected from rocks and tree stumps.
Kawasaki's unique fully-enclosed wet multi-plate rear braking system keeps the mud out and the stopping power in. It is highly compact and well protected from rocks and tree stumps.
The compact CVT uses a belt clutch enabling a smaller, lighter design that rivals with a centrifugal clutch. The settings offer optimised speed transition characteristics, increasing control during low-speed operation.
The compact CVT uses a belt clutch enabling a smaller, lighter design that rivals with a centrifugal clutch. The settings offer optimised speed transition characteristics, increasing control during low-speed operation.
Kawasaki’s high-grade power steering (EPS) offers both enhanced handling and increased ride comfort. Turning the handle causes a signal to be sent to the EPS ECU, initiating assistance. The Electronic Power Steering is not only speed variable, it also acts as a damping system reducing bump steer.
Kawasaki’s high-grade power steering (EPS) offers both enhanced handling and increased ride comfort. Turning the handle causes a signal to be sent to the EPS ECU, initiating assistance. The Electronic Power Steering is not only speed variable, it also acts as a damping system reducing bump steer.
A first for a Japanese ATV, the BRUTE FORCE 750 4x4i comes standard with six-spokes cast aluminum wheels, enhanching its stylish looks and reducing un-sprung weight.
A first for a Japanese ATV, the BRUTE FORCE 750 4x4i comes standard with six-spokes cast aluminum wheels, enhanching its stylish looks and reducing un-sprung weight.
The BRUTE FORCE 750 4x4i is a true workhorse, offering a massive 120kg combined carrying capacity and, thanks to its sturdy chassis and low-down grunt, boasts an equally impressive 567kg towing capacity.
The BRUTE FORCE 750 4x4i is a true workhorse, offering a massive 120kg combined carrying capacity and, thanks to its sturdy chassis and low-down grunt, boasts an equally impressive 567kg towing capacity.
Improved multi-purpose meter assembly includes speedometer, odometer, trip, fuel gauge, temperature gauge, clock and hour meter plus neutral reverse gear, 2WD/4WD, belt life and oil warning indicators.
Improved multi-purpose meter assembly includes speedometer, odometer, trip, fuel gauge, temperature gauge, clock and hour meter plus neutral reverse gear, 2WD/4WD, belt life and oil warning indicators.
Double wishbone suspension used front and rear ensures high ground following ability and ride comfort, especially in the low and medium speed ranges. Suspension settings contribute to a planted feeling in corners. Designed to handle rough and uneven ground.
Double wishbone suspension used front and rear ensures high ground following ability and ride comfort, especially in the low and medium speed ranges. Suspension settings contribute to a planted feeling in corners. Designed to handle rough and uneven ground.
The BRUTE FORCE 750's muscular V-Twin, fuel injected engine churns out a hefty 37.3 kW (51PS) @ 6,750 rpm and 58.1Nm @ 4,750 rpm, giving it more than enough grunt to squeeze the most out of the enhanced chassis.
The BRUTE FORCE 750's muscular V-Twin, fuel injected engine churns out a hefty 37.3 kW (51PS) @ 6,750 rpm and 58.1Nm @ 4,750 rpm, giving it more than enough grunt to squeeze the most out of the enhanced chassis.
Kawasaki's unique fully-enclosed wet multi-plate rear braking system keeps the mud out and the stopping power in. It is highly compact and well protected from rocks and tree stumps.
Kawasaki's unique fully-enclosed wet multi-plate rear braking system keeps the mud out and the stopping power in. It is highly compact and well protected from rocks and tree stumps.
The compact CVT uses a belt clutch enabling a smaller, lighter design that rivals with a centrifugal clutch. The settings offer optimised speed transition characteristics, increasing control during low-speed operation.
The compact CVT uses a belt clutch enabling a smaller, lighter design that rivals with a centrifugal clutch. The settings offer optimised speed transition characteristics, increasing control during low-speed operation.
Kawasaki’s high-grade power steering (EPS) offers both enhanced handling and increased ride comfort. Turning the handle causes a signal to be sent to the EPS ECU, initiating assistance. The Electronic Power Steering is not only speed variable, it also acts as a damping system reducing bump steer.
Kawasaki’s high-grade power steering (EPS) offers both enhanced handling and increased ride comfort. Turning the handle causes a signal to be sent to the EPS ECU, initiating assistance. The Electronic Power Steering is not only speed variable, it also acts as a damping system reducing bump steer.
A first for a Japanese ATV, the BRUTE FORCE 750 4x4i comes standard with six-spokes cast aluminum wheels, enhanching its stylish looks and reducing un-sprung weight.
A first for a Japanese ATV, the BRUTE FORCE 750 4x4i comes standard with six-spokes cast aluminum wheels, enhanching its stylish looks and reducing un-sprung weight.
The BRUTE FORCE 750 4x4i is a true workhorse, offering a massive 120kg combined carrying capacity and, thanks to its sturdy chassis and low-down grunt, boasts an equally impressive 567kg towing capacity.
The BRUTE FORCE 750 4x4i is a true workhorse, offering a massive 120kg combined carrying capacity and, thanks to its sturdy chassis and low-down grunt, boasts an equally impressive 567kg towing capacity.
Improved multi-purpose meter assembly includes speedometer, odometer, trip, fuel gauge, temperature gauge, clock and hour meter plus neutral reverse gear, 2WD/4WD, belt life and oil warning indicators.
Improved multi-purpose meter assembly includes speedometer, odometer, trip, fuel gauge, temperature gauge, clock and hour meter plus neutral reverse gear, 2WD/4WD, belt life and oil warning indicators.
Double wishbone suspension used front and rear ensures high ground following ability and ride comfort, especially in the low and medium speed ranges. Suspension settings contribute to a planted feeling in corners. Designed to handle rough and uneven ground.
Double wishbone suspension used front and rear ensures high ground following ability and ride comfort, especially in the low and medium speed ranges. Suspension settings contribute to a planted feeling in corners. Designed to handle rough and uneven ground.
| Motortype | Vandkølet 4-takts V-twin |
|---|---|
| Kompressionsforhold | 9.3:1 |
| Ventilsystem | SOHC, 4 ventiler |
| Boring x slaglængde | 85.0 x 66.0 mm |
| Slagvolumen | 749 cm³ |
| Brændstofsystem | Brændstof indsprøjtning: 36 mm x 2 |
| Smøring | Tvangssmørring, vådsumpsmørring |
| Startersystem | Elektrisk |
| Tændingssystem | Digital DC-CDI |
| Maks effekt | 37.3 kW {51 PS} / 6,750 rpm |
|---|---|
| Maks moment | 58.1 N•m {5.9 kgf•m} / 4,750 rpm |
| Gear | 2-trins automatisk med bakgear |
| Sekundær transmission | Kardan, 2WD/4WD |
| Stel type | Dobbelt-bjælket, rørformet højstyrkestål |
|---|---|
| Efterløb | 12 mm |
| Vandring, forhjul | 169 mm |
| Vandring, baghjul | 190 mm |
| Dæk, forhjul | AT 25 x 8-12 |
| Dæk, baghjul | AT25 x 10-12 |
| L x B x H | 2,195 x 1,180 x 1,220 mm |
| Styrudslag V/H | 47° / 47° |
| Akselafstand | 1,285 mm |
| Frihøjde | 240 mm |
| Tankindhold | 19.0 liter |
| Sædehøjde | 910 mm |
| Køreklar vægt | 318 kg |
| Bremser, forhjul | Dobbelte skiver |
|---|---|
| Forbremse, diameter | Ø 200 mm |
| Type af forreste bremsekaliber | Dobbelt-stempel |
| Bremser, baghjul | Lukket våd multi-plade |
| Affjedring, front | Dobbelt wishbone med 5-trins justerbar fjerderforspænding |
| Affjedring, bag | Dobbelt wishbone med 5-vejs regulerbar fjerder-forspænding |
