More Aggressive Styling
Sharper new styling transforms these kids’ ATV models, giving them a much more serious appearance than their toy-like predecessors. Strong KX imagery contributes to their sporty, aggressive looks while ensuring they are instantly recognisable as a Kawasaki.
Increased Mud Protection
Inside the front wheel wells, larger covers offer increased mud protection, helping to keep dirt and debris out of the engine room.

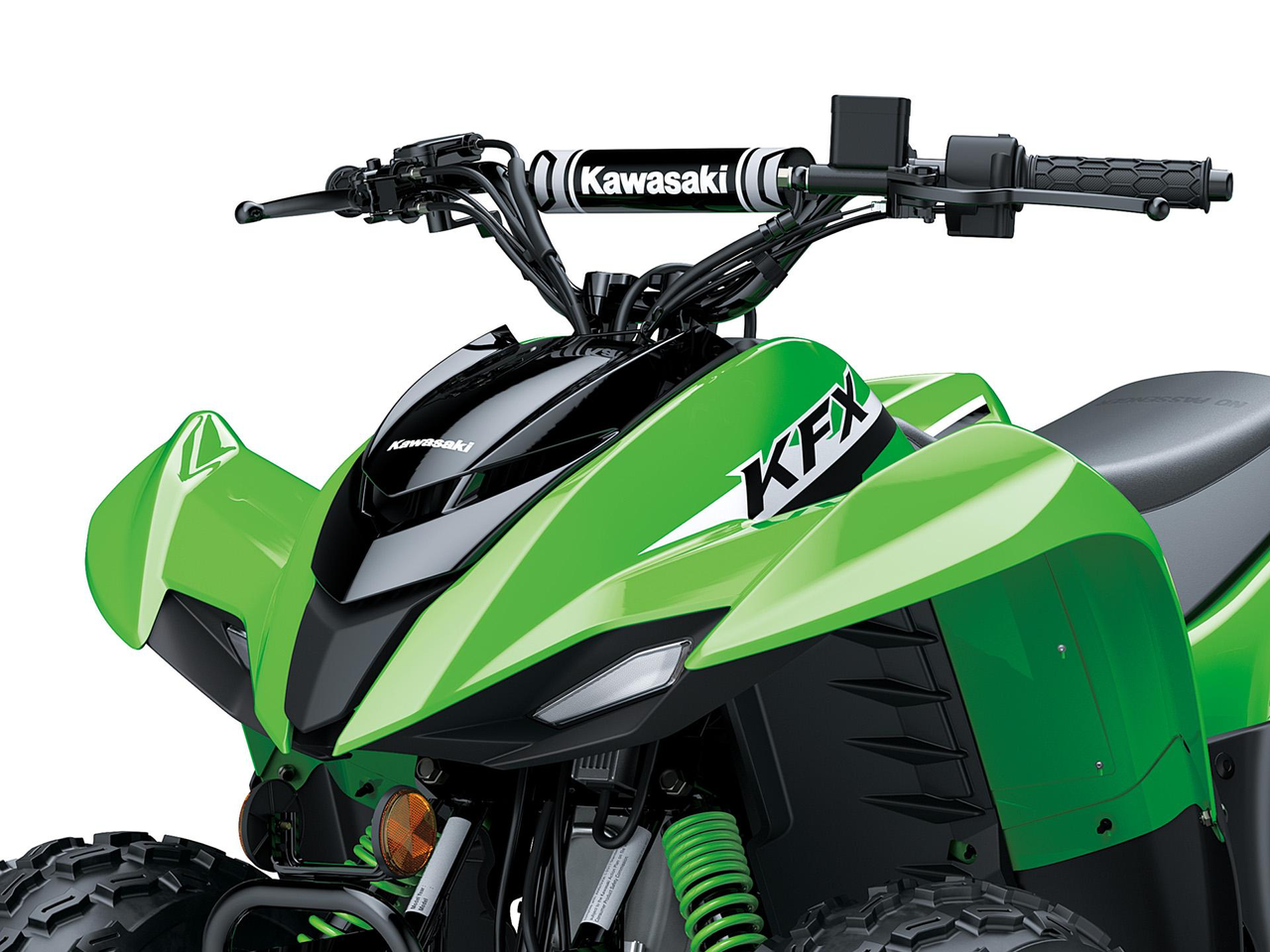

LED Accent Light
Previously just decals, the LED accent lights offer enhanced cosmetic flair, while also making the ATV easier to spot so you can see where your young rider is as they explore.

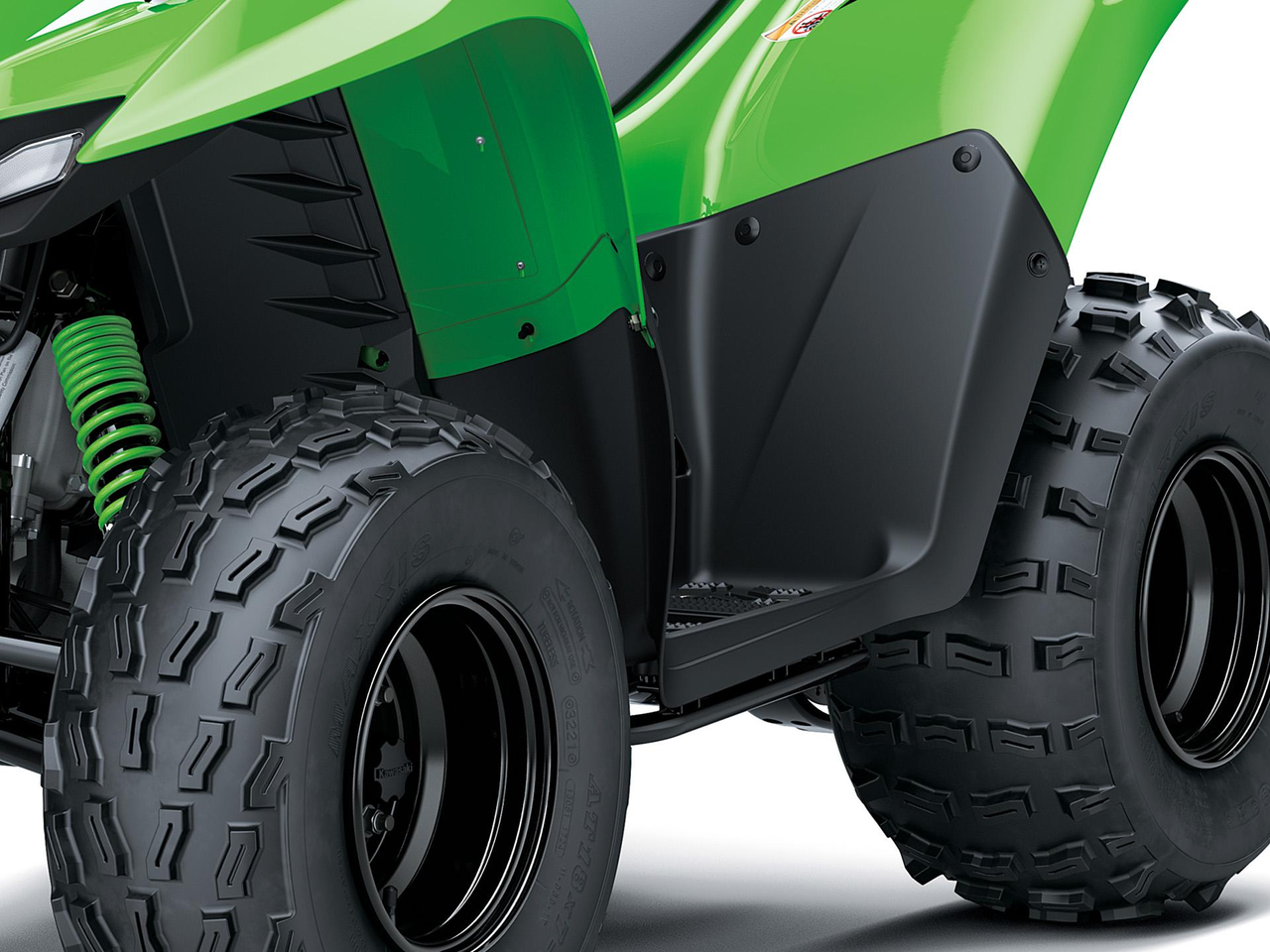

Sure Footing
Revised pattern for the floorboards provides slip-resistant footing to help young riders control their ATV when stand-up riding.
Engine
| Motortype | Luftafkølet, 4-takts enkelt-cylindret |
|---|---|
| Kompressionsforhold | 10.0:1 |
| Ventilsystem | SOHC, 2 ventiler |
| Boring x slaglængde | 47,0 x 51,8 mm |
| Slagvolumen | 90 cm³ |
| Brændstofsystem | Karburator |
| Smøring | Tvangssmørring, vådsumpsmørring med oliekøler |
| Startersystem | Elektrisk- og kickstarter |
| Tændingssystem | Batteri og spole (transistoriseret tænding) |
Performance & Transmission
| Maks effekt | 4,8 kW {7 PS} / 7.500 rpm |
|---|---|
| Maks moment | 6,6 N•m {0,6 kgf•m} / 5.500 rpm |
| Gear | CVT med centrifugal kobling |
| Primær transmission | Remdrevet kontinuerligt variabel transmission(CVT) |
| Sekundær transmission | Kæde |
Frame & Dimensions
| Stel type | Dobbelt rørstel, stål |
|---|---|
| Kronrørsvinkel | 3,8 ° |
| Efterløb | 15 mm |
| Vandring, forhjul | 71 mm |
| Vandring, baghjul | 74 mm |
| Dæk, forhjul | AT 18 x 7-8 |
| Dæk, baghjul | AT18 x 9-8 |
| L x B x H | 1.425 x 900 x 925 mm |
| Styrudslag V/H | 30° / 30° |
| Akselafstand | 965 mm |
| Frihøjde | 100 mm |
| Tankindhold | 5,3 liter |
| Sædehøjde | 650 mm |
| Køreklar vægt | 122 kg |
Brakes & Suspension
| Parkeringsbremse | Mekanisk tromle |
|---|---|
| Bremser, forhjul | Mekanisk tromle |
| Bremser, baghjul | Hydraulisk skivebremse |
| Affjedring, front | Enkelt A-arm |
| Affjedring, bag | Svingarm |
