Low overall weight, fine-tuned chassis rigidity balance, 18”/17” radial tyres and suspension settings result in a bike with light, easy handling and easy manoeuvrability. It's low estimated dry weight is 215 kg.

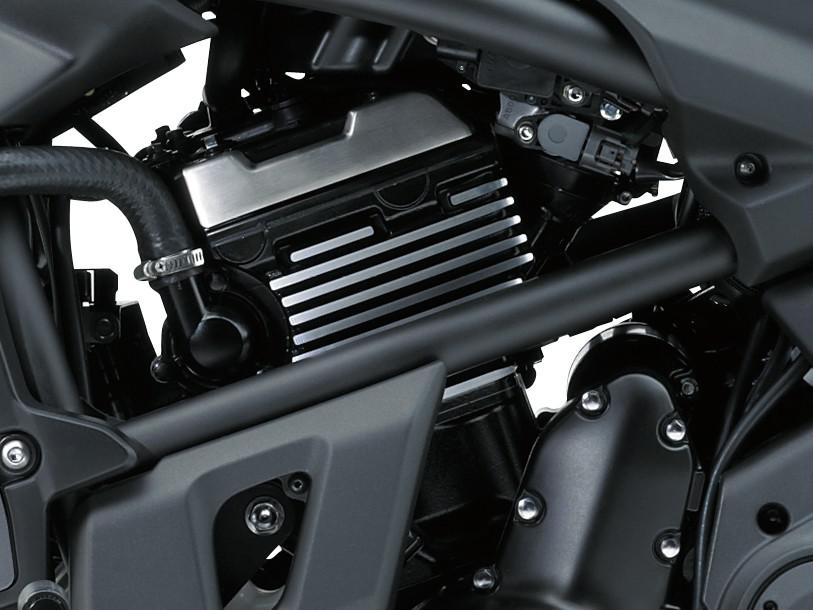

Liquid-cooled, DOHC, 8-valve 649 cm3 Parallel Twin with fuel injection delivers smooth, responsive performance, especially in the low and medium rpm ranges. The engine was tuned for rider-friendly power characteristics that will inspire confidence in new riders. The Vulcan S offers smooth starts from a standstill, smooth acceleration, and a satisfying pull when accelerating. The strong acceleration facilitates highway merging and passing.
Flowing style with long-and-low stance and modern elements like the original headlamp and cast wheels with five spoke pair design give the Vulcan S very nontraditional cruiser looks.
Being able to easily put your feet on the ground when stopped is one of the most important factors in feeling comfortable on a motorcycle. At 705 mm, the Vulcan S’s low seat is very accommodating.

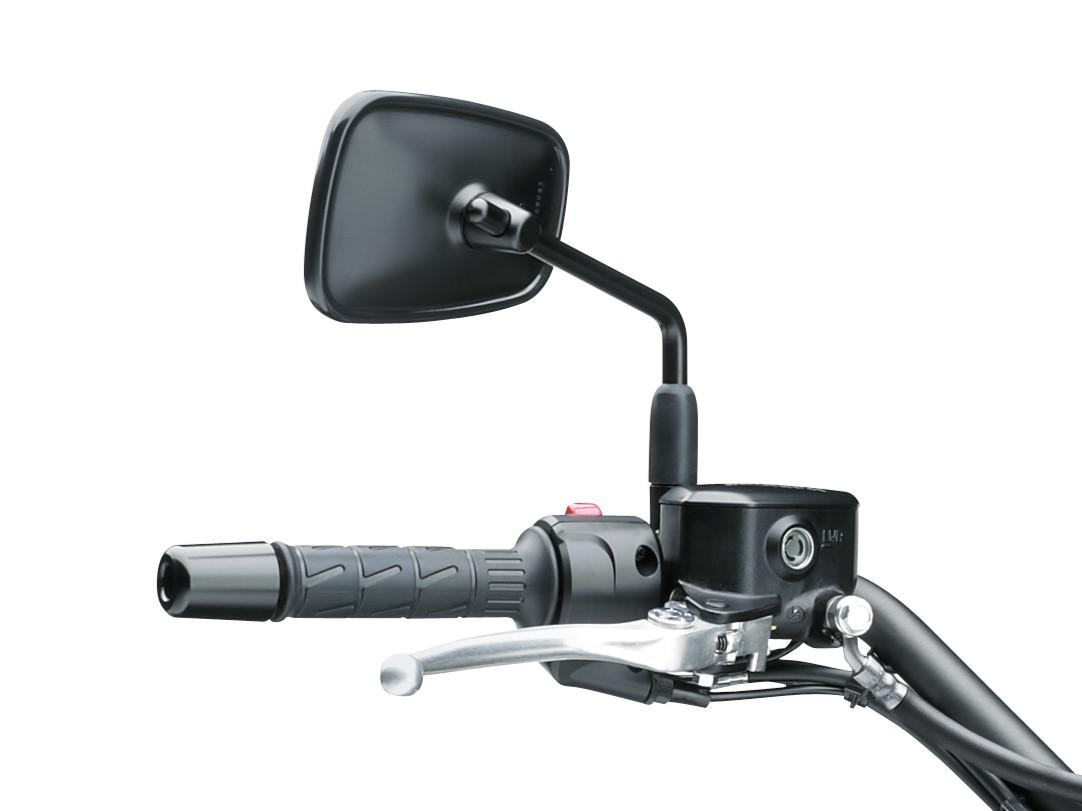

Multi-position levers allow riders to adjust lever position to suit hand size and preference.
The compact engine and slim frame result in a design that is narrow at the knees and feet. Forward positioned footpegs are ideal for relaxed, cruiser style riding.

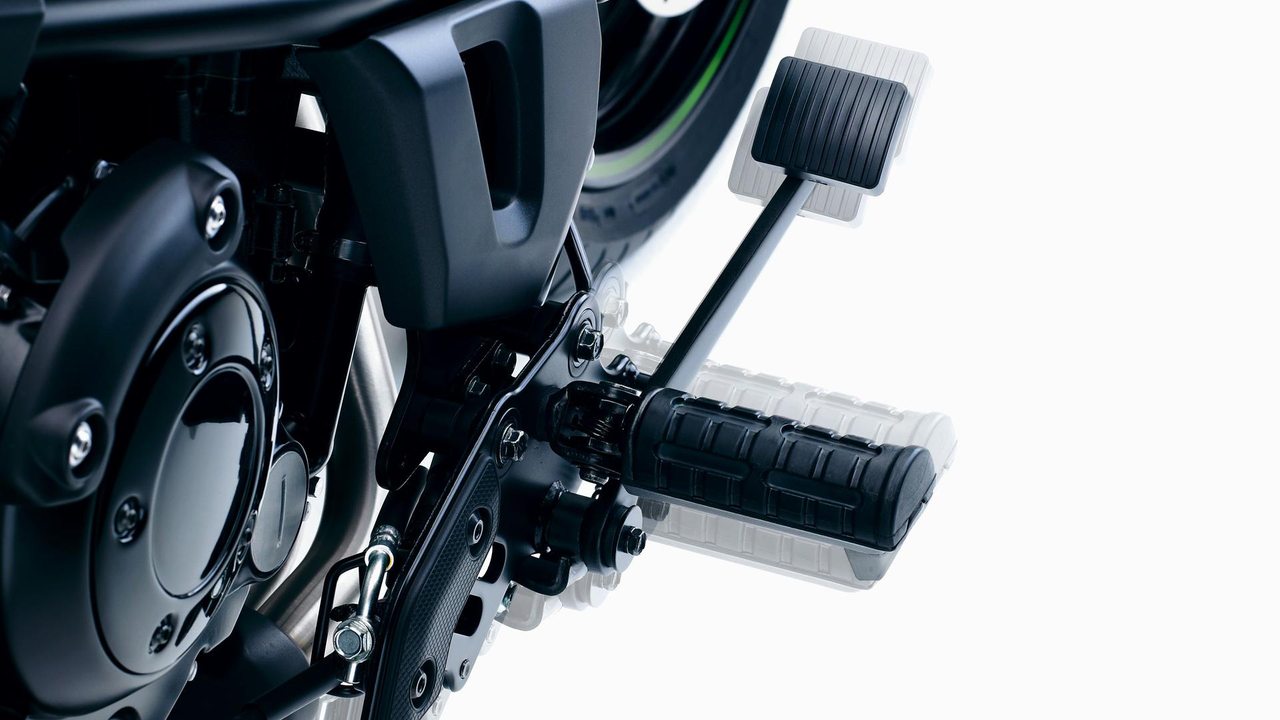

3-position footpegs allow riders to adjust foot position to suit size and preference. Three positions available: STD, 25 mm forward, 25 mm back.
With its 14 litre fuel tank capacity and the Parallel Twin engine’s good fuel economy, the long range offered by the Vulcan S means riders can go longer between fill-ups—convenient in town, and reassuring when out on a daytrip.

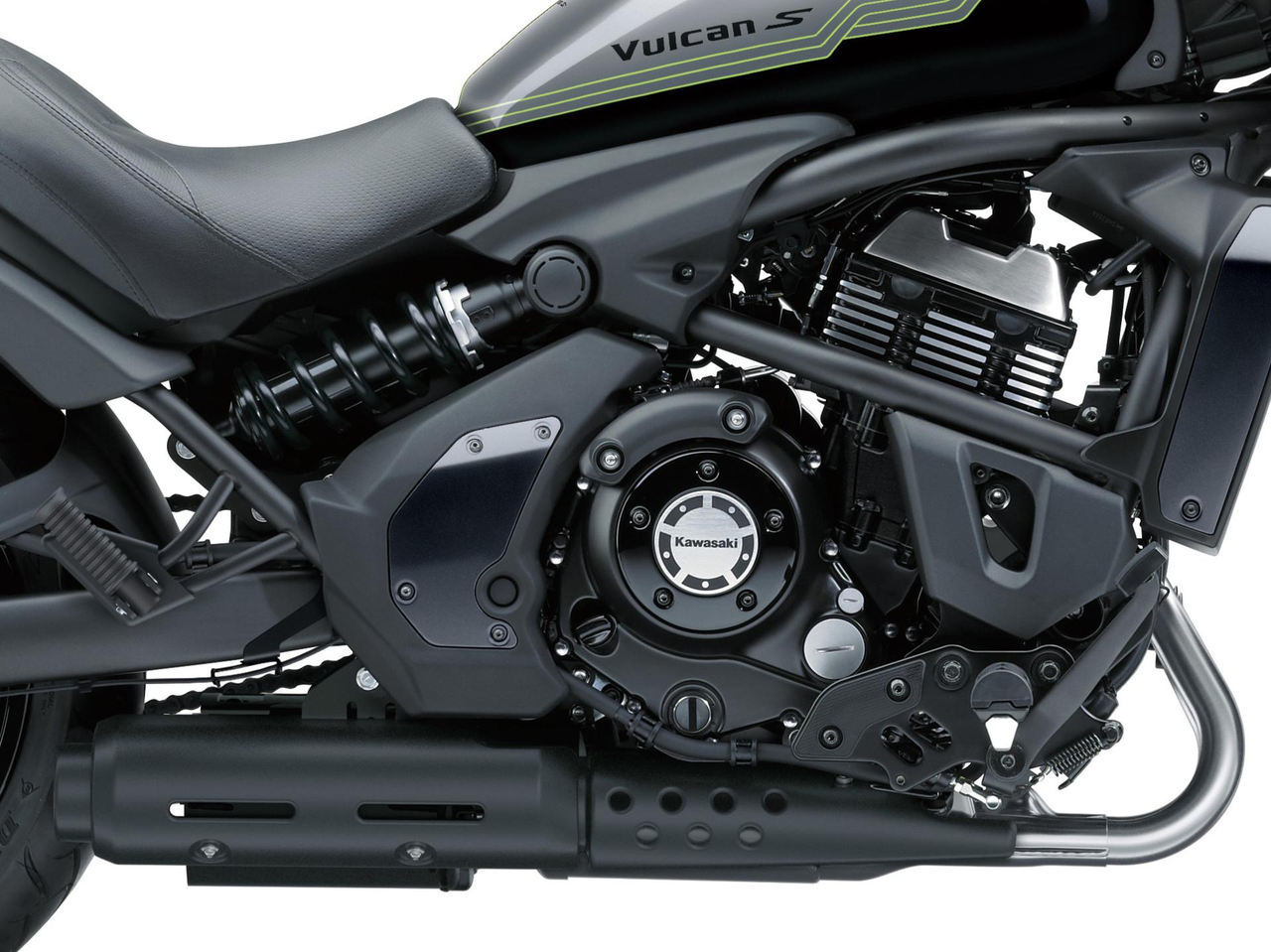

Muffler located under the engine contributes to a low centre of gravity, and is tucked out of the way, making it easier to reach the ground when stopped. The muffler’s design conveys both power and style.

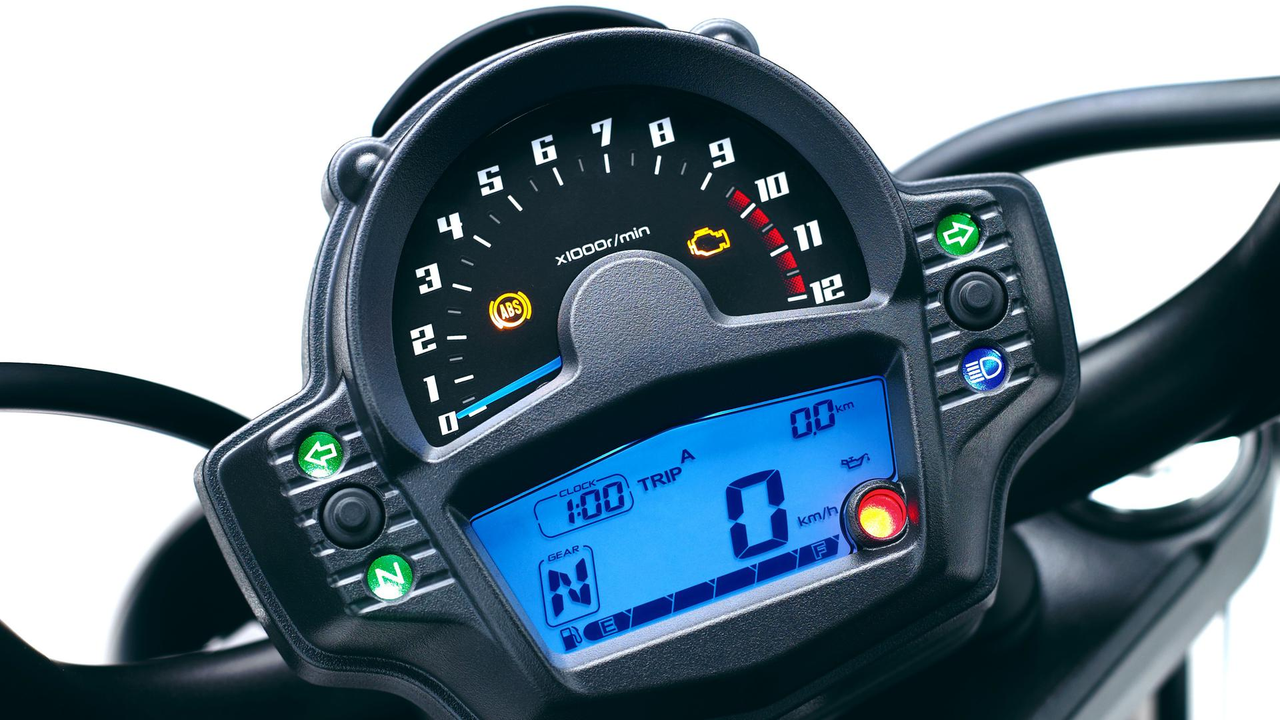

Original-design instrumentation cluster features an analogue-style tachometer and multi-purpose LCD. Convenient features keep riders fully informed of operating conditions. Including a gear indicator.
Wheelbase of 1,575 mm was chosen for a balance of light handling and superior riding stability. The same characteristics that make it fun to ride (light handling and relaxed, rider-friendly ergonomics), also make the Vulcan S ideal for new riders.

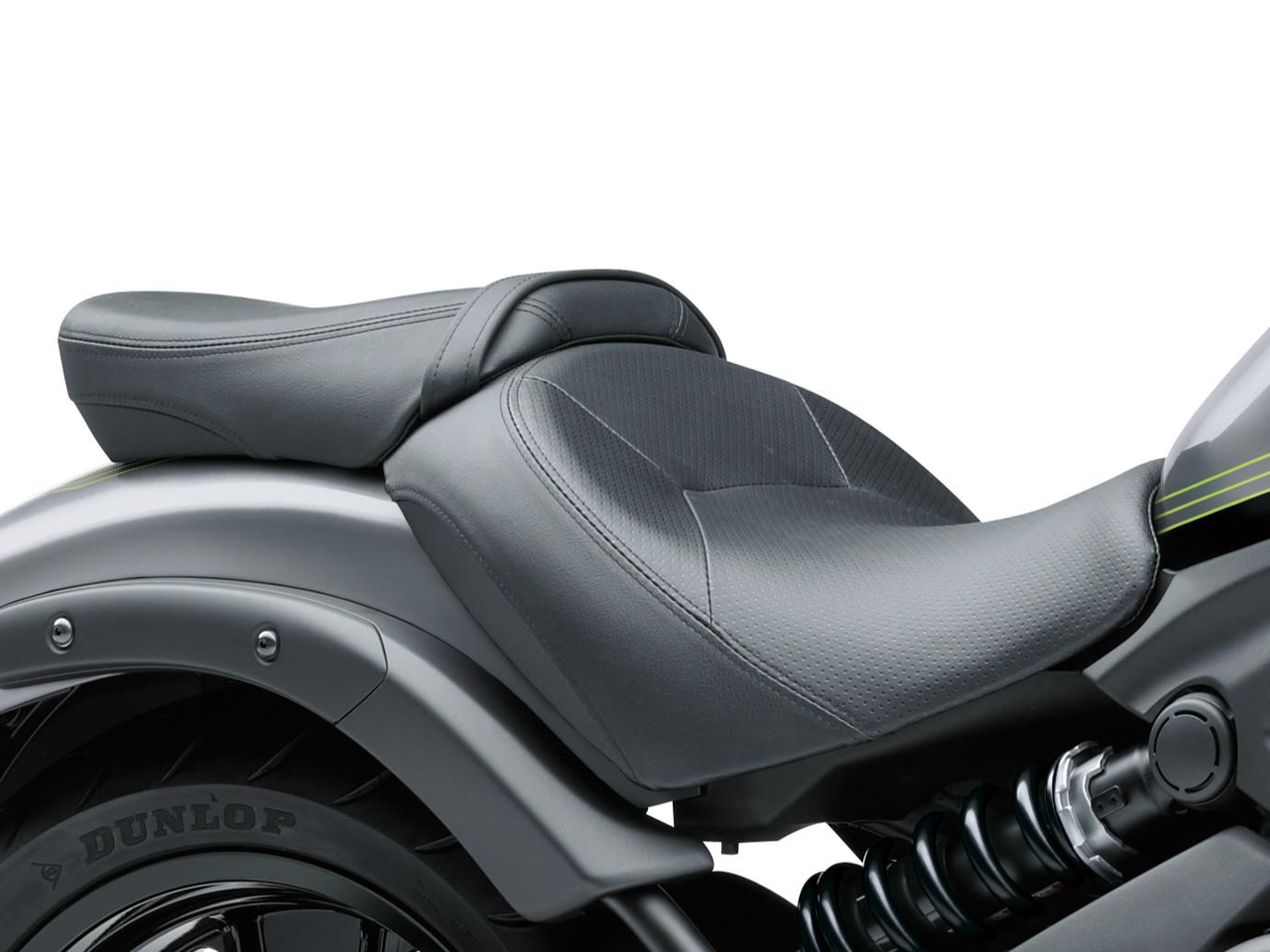

Sculpted seat design with thick padding offers excellent comfort and good hip support.

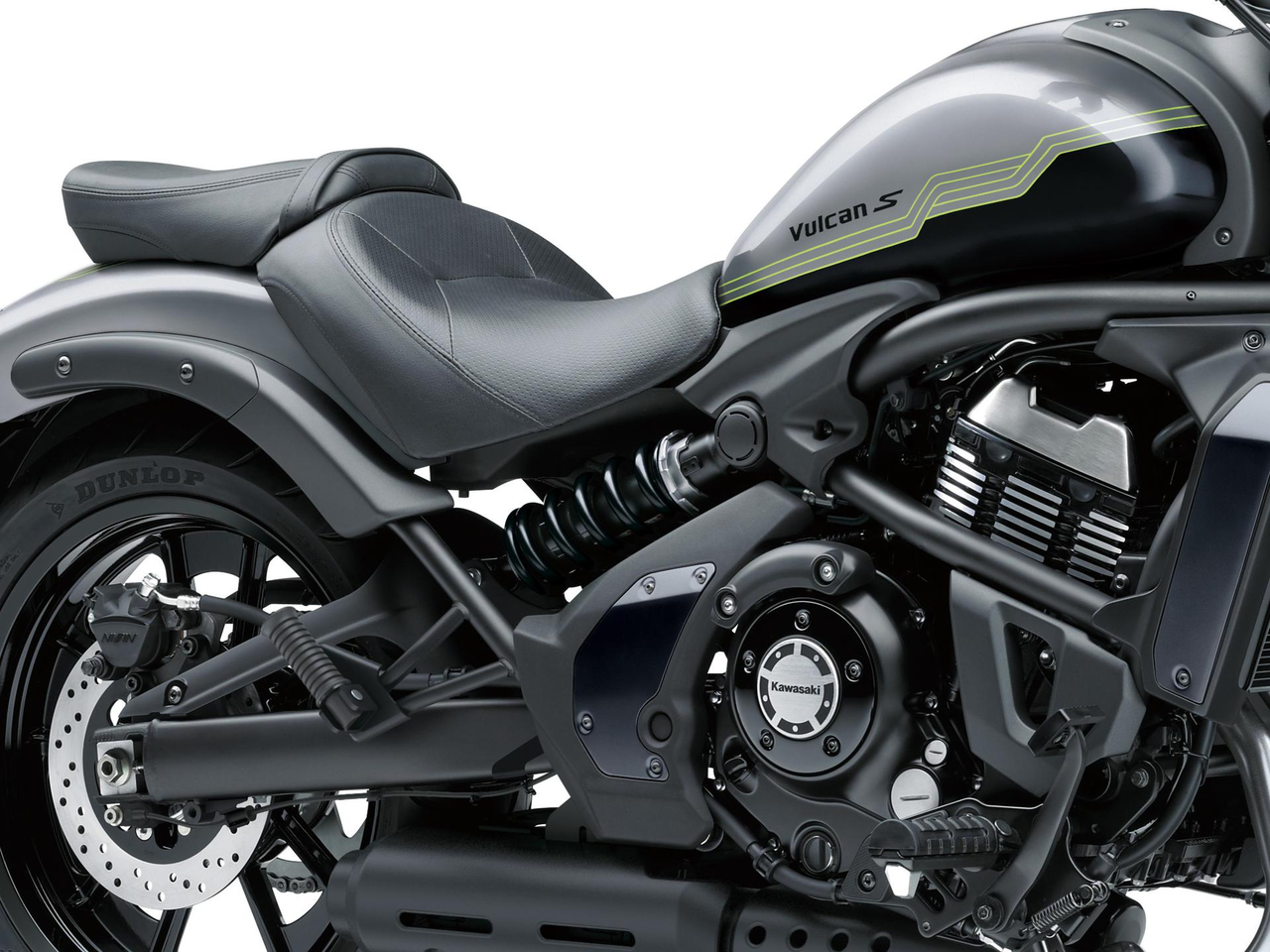

The design of the frame, rear suspension and swingarm create an integrated line running from the front of the bike to the rear hub. A pipe frame of high-tensile steel gives the bike a lightweight appearance. 3D analysis was used to achieve the target rigidity and stress values.

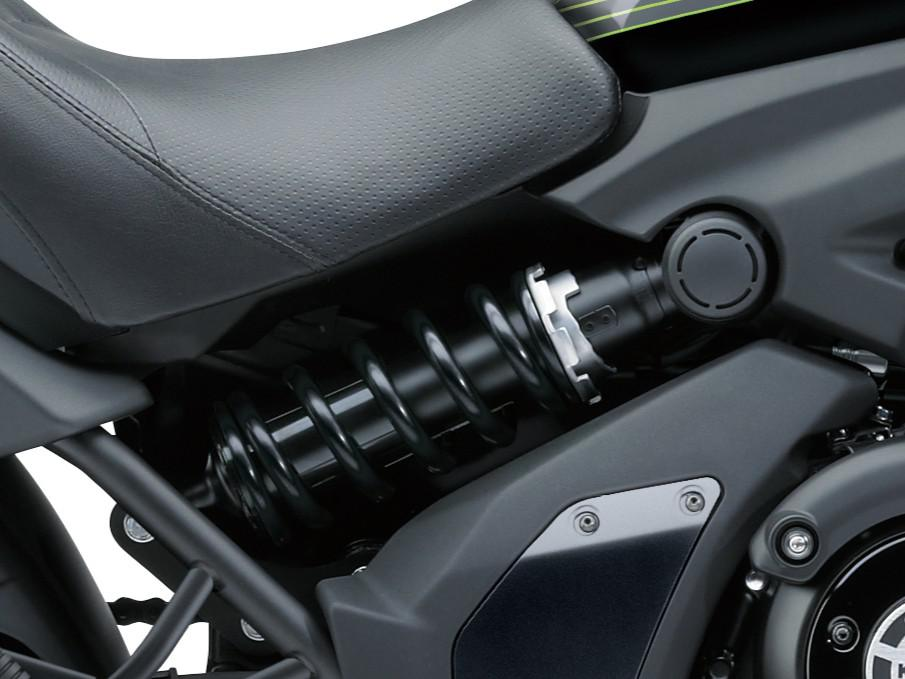

Offset laydown single-shock rear suspension is equipped with linkage to enable a longer stroke for increased ride comfort. The rear suspension arrangement also contributes to the bike’s compact design, freeing up space for a large-volume silencer under the engine. Rear shock features adjustable preload, with 7 positions to suit rider size and payload.

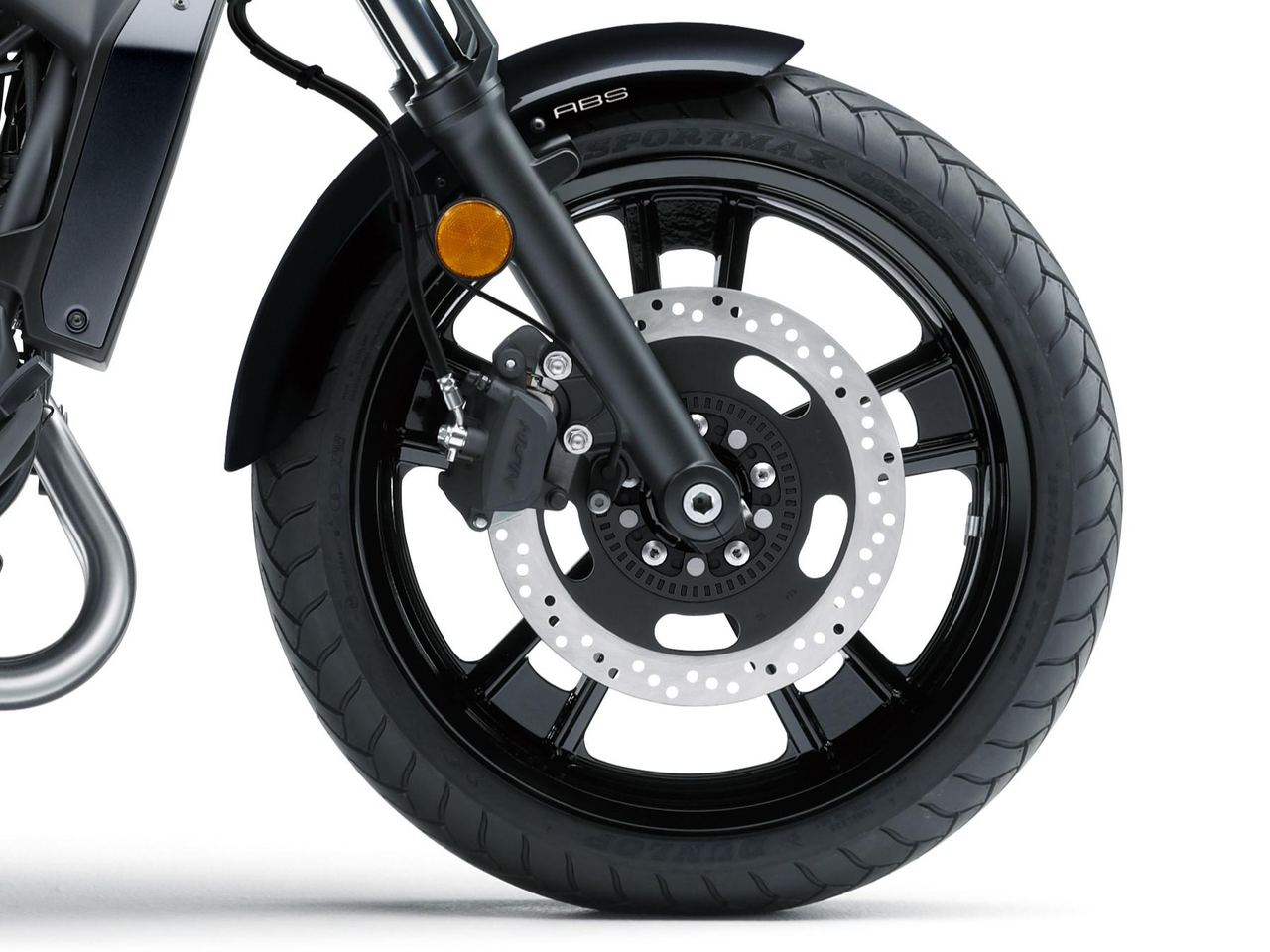

Large-diameter disc brakes balance ample stopping power with easy control for beginning riders.
Den økonomiske kørselsindikator er et mærke, der vises på instrumentbrættet for at indikere gunstigt brændstofforbrug og opmuntre til brændstofeffektiv kørsel.
ABS (Anti-lock Brake System) sikrer stabil bremseydelse ved at forhindre hjullåsning under opbremsning.
| Motortype | Vandkølet, 4-takts parallel Twin |
|---|---|
| Kompressionsforhold | 10.8:1 |
| Ventilsystem | DOHC, 8 ventiler |
| Boring x slaglængde | 83.0 x 60.0 mm |
| Slagvolumen | 649 cm³ |
| Brændstofsystem | Brændstof indsprøjtning: 38 mm x 2 |
| Smøring | Tvangssmørring, semi-tørsumpsmørring |
| Startersystem | Elektrisk |
| Tændingssystem | Batteri og spole (transistoriseret tænding) |
| Maks effekt | 44.7 kW {61 PS} / 7,500 rpm |
|---|---|
| Maks moment | 62.4 N•m {6.4 kgf•m} / 6,600 rpm |
| CO2 udledning | 104 g/km |
| Brændstofforbrug | 4.5 l/100km |
| CO2 udledning 35kW / 48HK kit | 102.0 g/km |
| Benzinforbrug 35KW / 48HK kit | 4.4 l/100km |
| Gear | 6-trins |
| Kobling | Våd multiskive |
| Primær udveksling | 2.095 (88 / 42) |
| Gearing 1. | 2.438 (39 / 16) |
| Gearing 2. | 1.714 (36 / 21) |
| Gearing 3. | 1.333 (32 / 24) |
| Gearing 4. | 1.111 (30 / 27) |
| Gearing 5. | 0.966 (28 / 29) |
| Gearing 6. | 0.852 (23 / 27) |
| Sekundær transmission | Forseglet kæde |
| Sekundær udveksling | 3.067 (46 / 15) |
| Stel type | Perimeterstel, højstyrkestål |
|---|---|
| Kronrørsvinkel | 31,0 ° |
| Efterløb | 120 mm |
| Vandring, forhjul | 130 mm |
| Vandring, baghjul | 80 mm |
| Dæk, forhjul | 120/70 R18 M/C 59H |
| Dæk, baghjul | 160/60 R17 M/C 69H |
| L x B x H | 2,310 x 880 x 1,100 mm |
| Styrudslag V/H | 35° / 35° |
| Akselafstand | 1,575 mm |
| Frihøjde | 130 mm |
| Tankindhold | 14.0 liter |
| Sædehøjde | 705 mm |
| Køreklar vægt* | 229 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 215 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Bremser, forhjul | Enkelt skive |
|---|---|
| Forbremse, diameter | Ø 300 mm |
| Type af forreste bremsekaliber | Dobbelt-stempel |
| Bremser, baghjul | Enkelt skive |
| Bagbremse, diameter | Ø 250 mm |
| Type af bageste bremsekaliber | Enkelt-stempel |
| Affjedring, front | Teleskop forgaffel |
| Diameter på forreste affjedring | Ø 41 mm |
| Affjedring, bag | Enkel, side-monteret bagdæmper monteret med link og justerbar 7-trins forspænding |
Arrow matt black exhaust system for Vulcan S. Full system made of stainless steel with catalyst and carbon endcap. This system is lighter compared to the stock exhaust system and gives a deep sporty sound.
The exhaust system is homologated according to EU regulations (emissions and noise) and has ECE type-approval. (Double oxygen sensor Euro5+)
Arrow matt black exhaust system for Vulcan S. Full system made of stainless steel with catalyst and carbon endcap. This system is lighter compared to the stock exhaust system and gives a deep sporty sound.
The exhaust system is homologated according to EU regulations (emissions and noise) and has ECE type-approval. (Double oxygen sensor Euro5+)
Durable steel construction in Chrome with KQR mounting system for efficient installation or removal of accessories once installed.
Purchase as a required component to mount:
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Quick release system inside the bag allows bags to be removed from the support easily without tools.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.

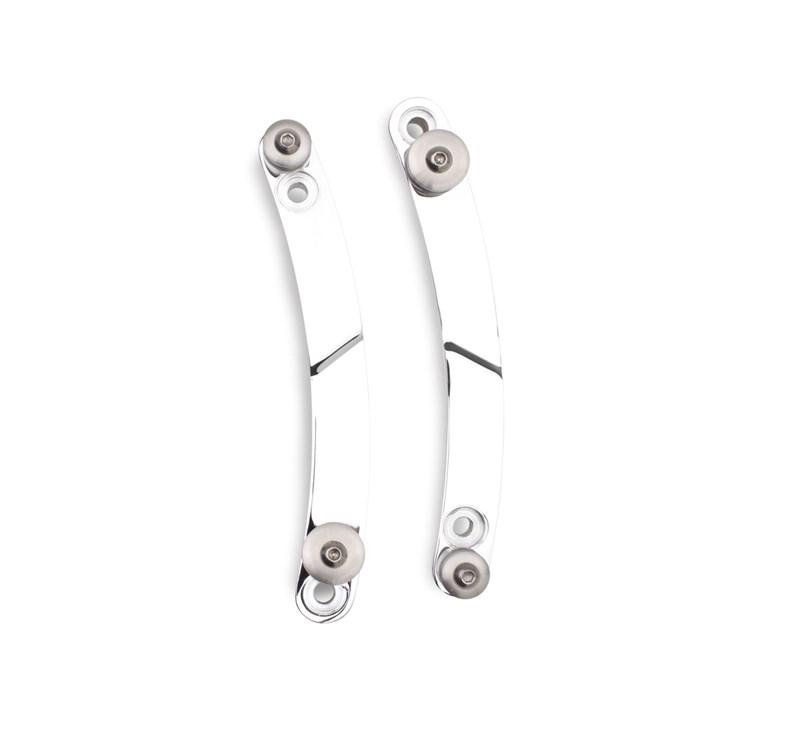

KQR mounting system allows for easy installation of KQR Saddlebags once installed.
Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm
The KQR Saddlebag Kit consists of 3 components:
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
(Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm)
The Fixed Saddlebag Kit consists of 2 components:

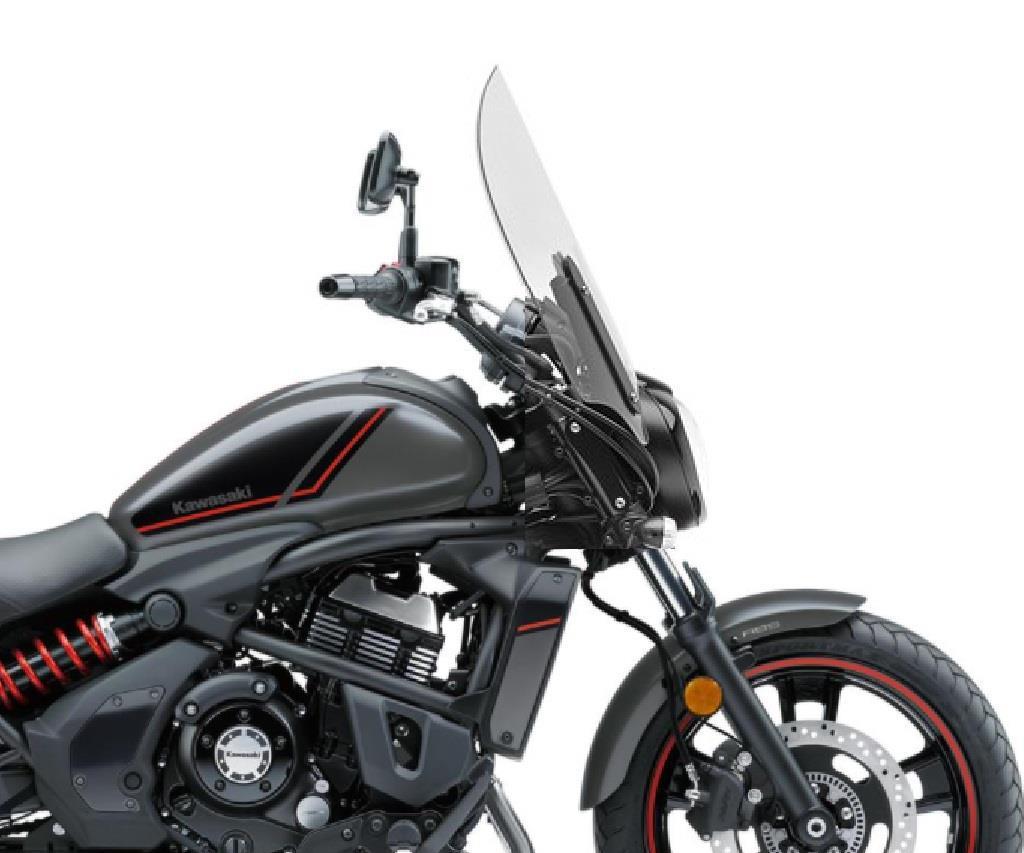

Large Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:

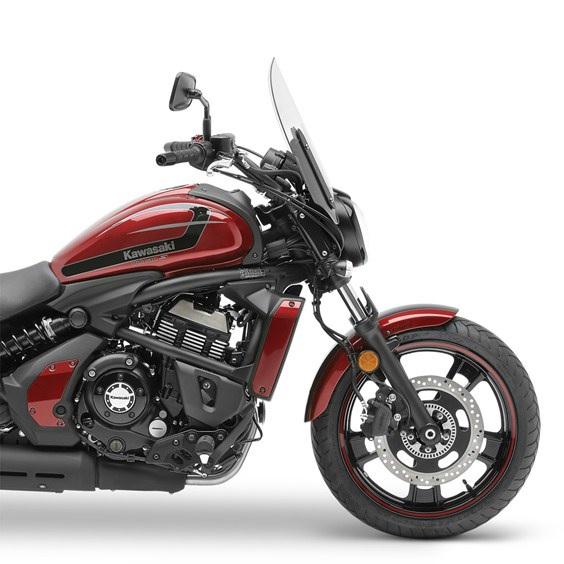

Medium Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:

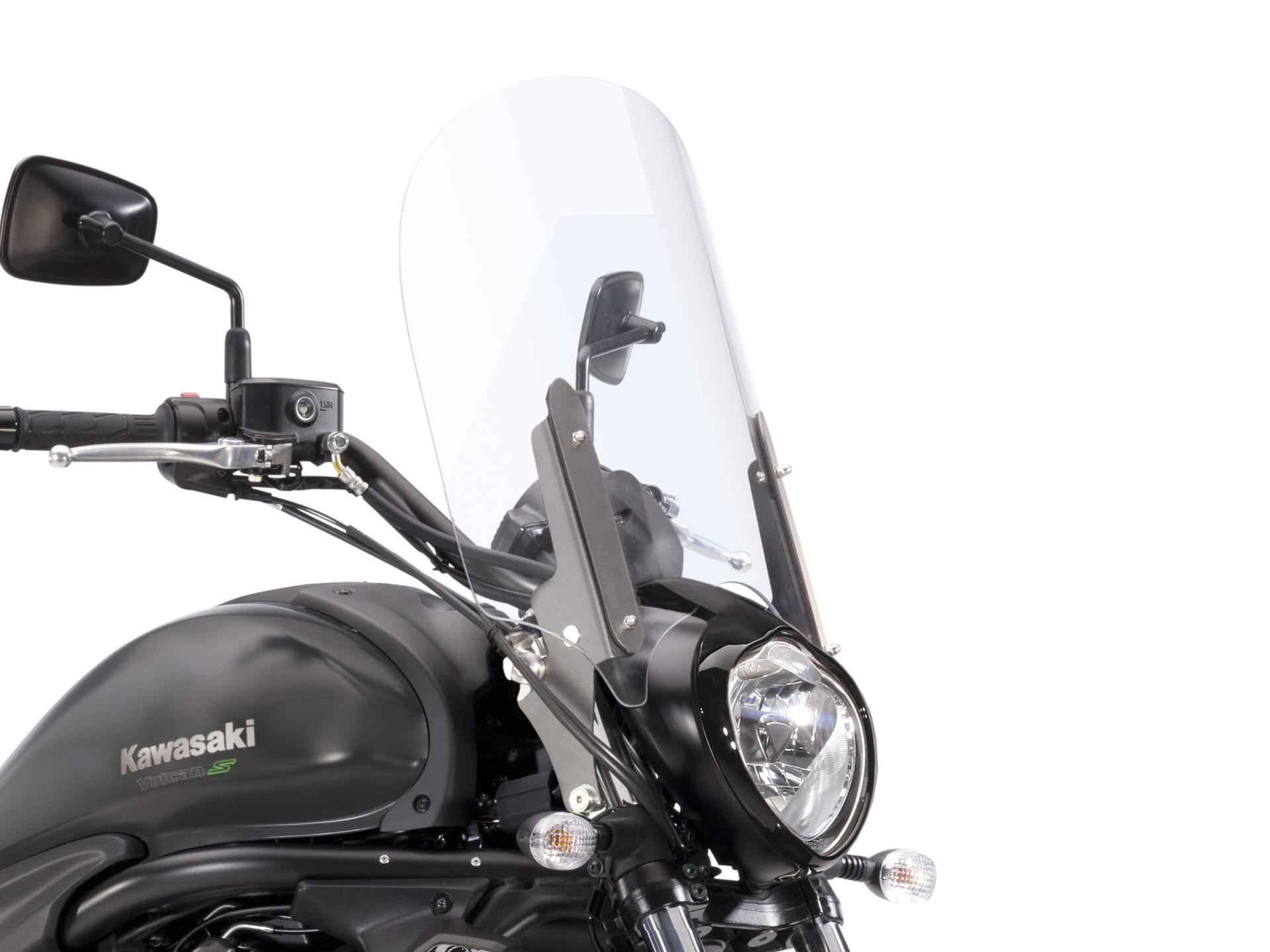

Large KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:

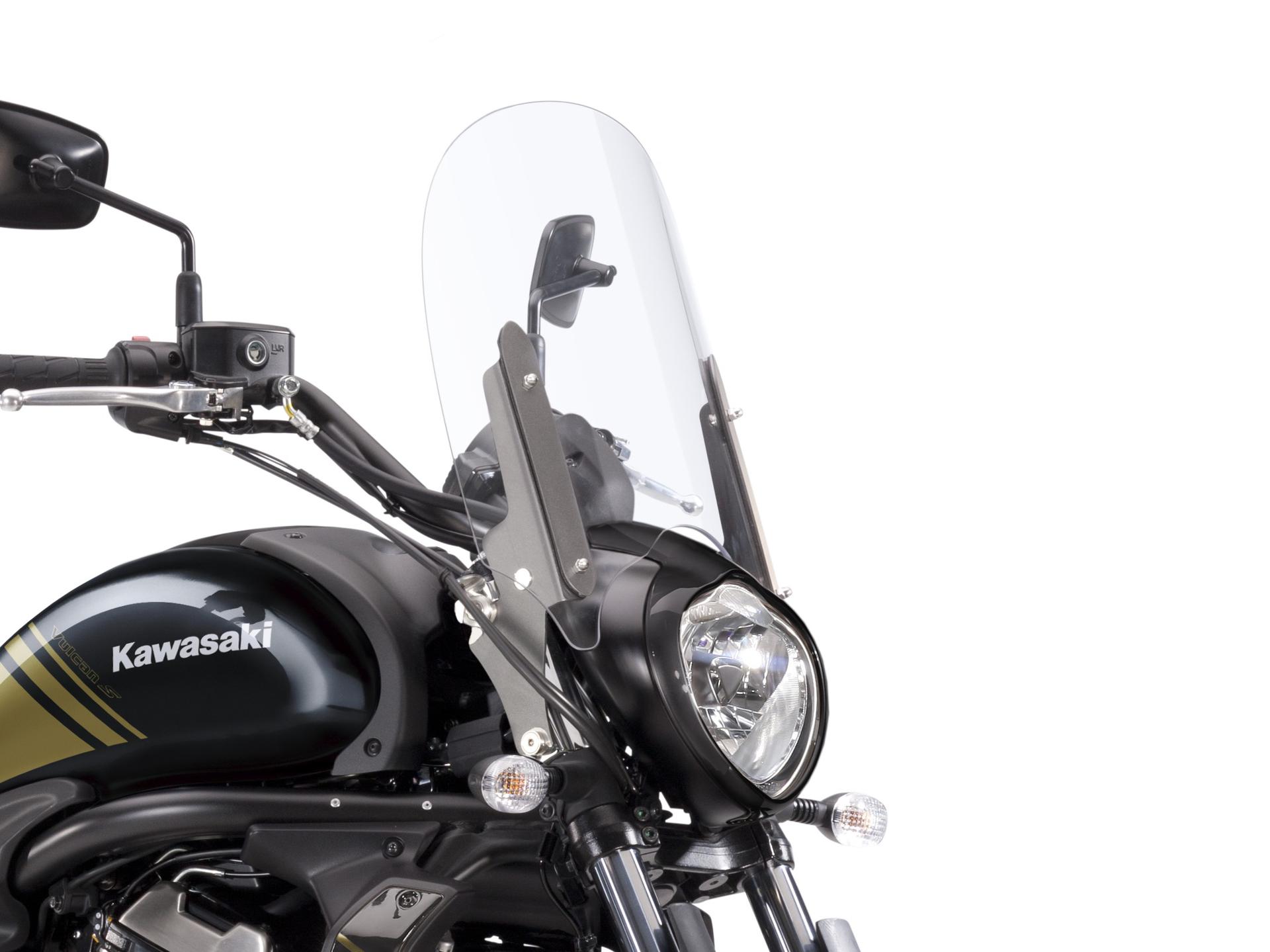

Medium KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:
Durable powder-coated steel construction with KQR mounting system for efficient installation or removal of accessories once installed.
Purchase as a required component to mount:

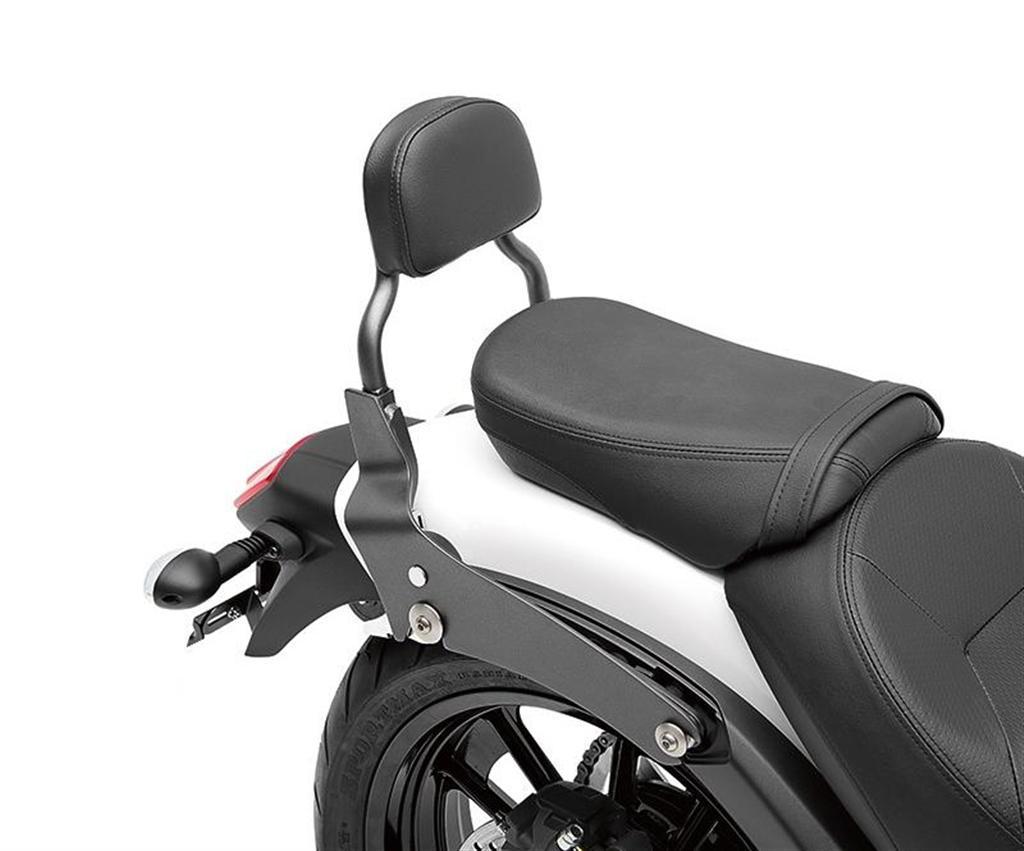

Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools

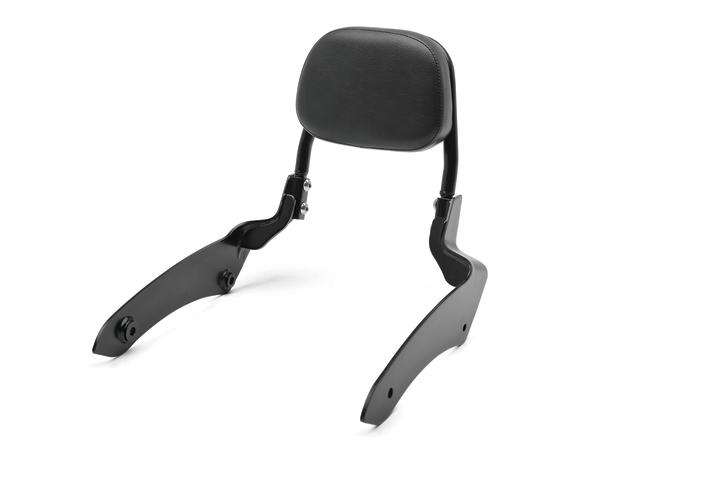

Padded backrest provides passenger comfort. Black steel construction rises 20cm (8”) tall from seat surface.

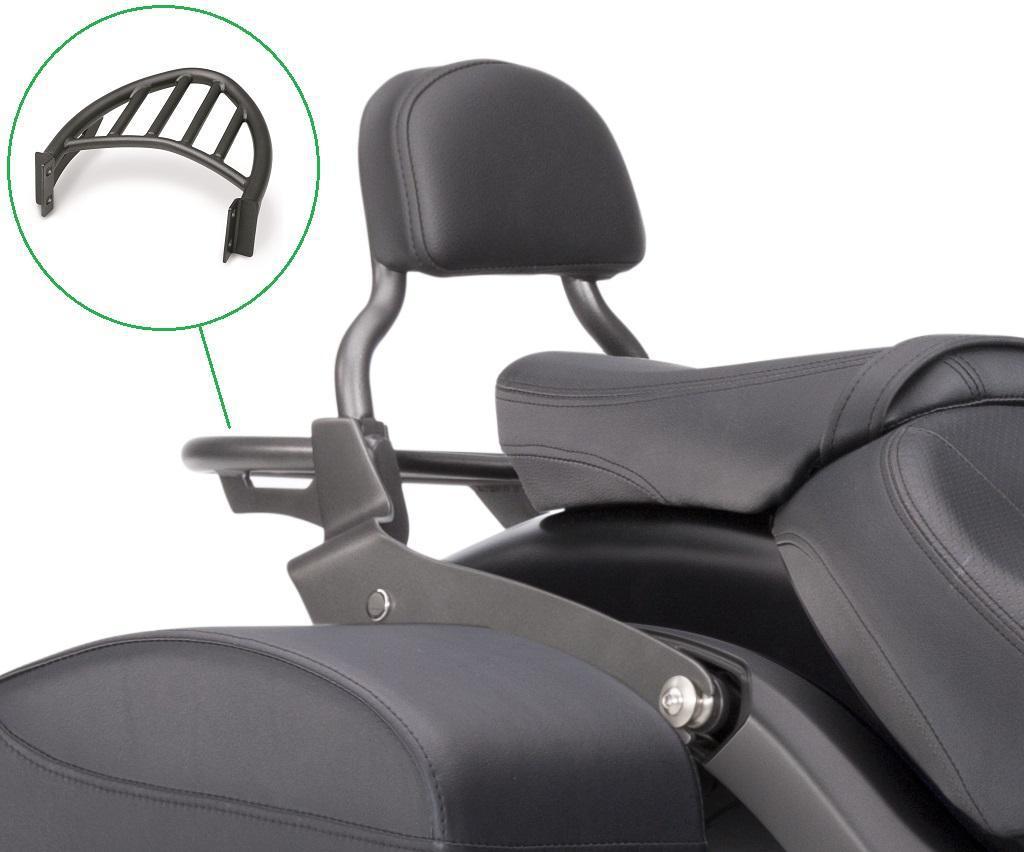

Luggage Rack Chrome (Option for KQR backrest)
Durable powder coated steel luggage rack that replaces the passenger seat.
Designed to enhance usability and styling.
Securely mount this luggage rack to your rear fender for extra cargo capacity.
Developed by Kawasaki to integrate with the clean, modern lines of your Vulcan S.
Length = 35cm, width = 20cm. Anthracite/Black or Chrome finish.
Important Notes: Not suitable for passenger seating.
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools

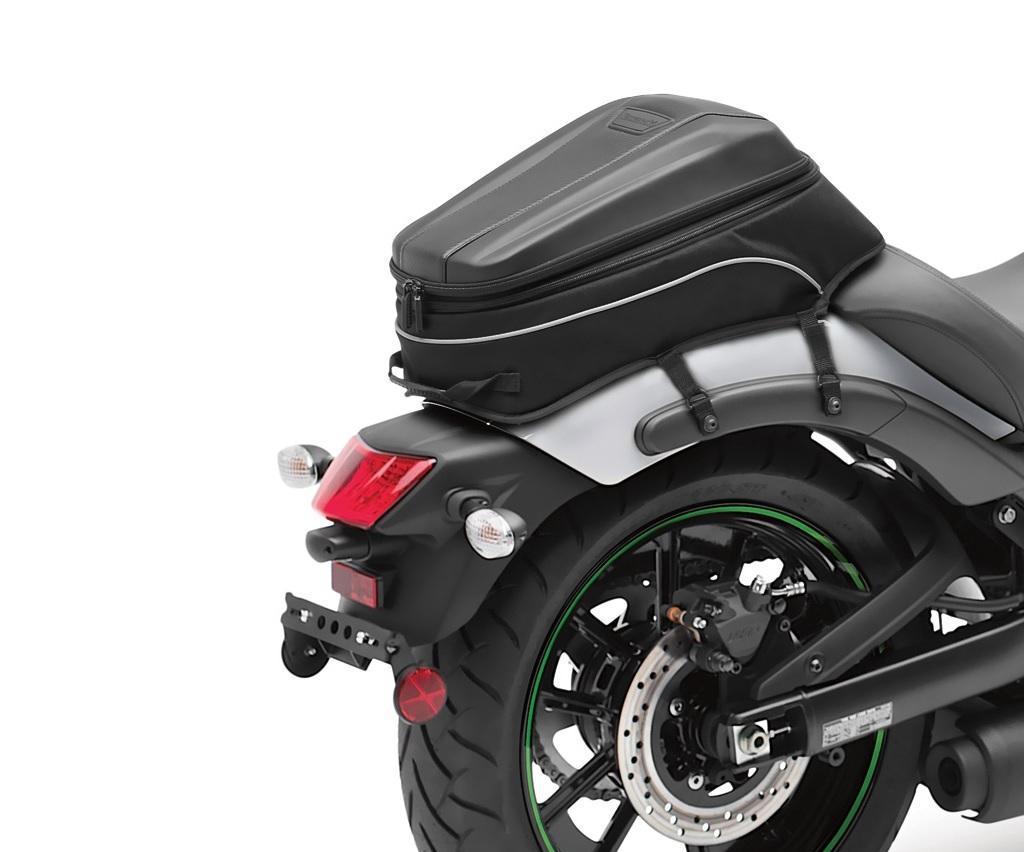

18-21L Rear Bag. Replaces the passenger seat.
Rugged, water-resistant nylon construction with reinforced foam body and lid.
Replaces rear seat and mounts to rear fender side bolts using custom quad side straps and steel center bracket with non-scratch rubberized coating to help protect paint finish
Expandable feature adds 7cm of vertical storage capacity (18-21 liters). Reflective piping for night visibility. Logo on lid.
L=45, W=25, H=20-28cm
Note: Do not use on satin, semi-gloss, or flat finish bodywork surfaces
Rugged, water-resistant nylon tank bag with reinforced foam body and lid to hold shape even when empty.
Expandable feature adds 7cm of storage capacity.
Clear window tray (13x10x4cm) for transponder, coins, etc. Dual outlet ports.
Reflective piping, front hook, magnetic skirt and rear strap. Non-scratch rubberized coating to protect paint finish.
Power/drink tube port at top of bag for direct access to electronic devices, hydration systems, etc. Including rain cover.
Volume 18-20L
L=43 W=28 H=15-22cm
Do not use on semi-gloss or matt/flat finish fuel tank surfaces

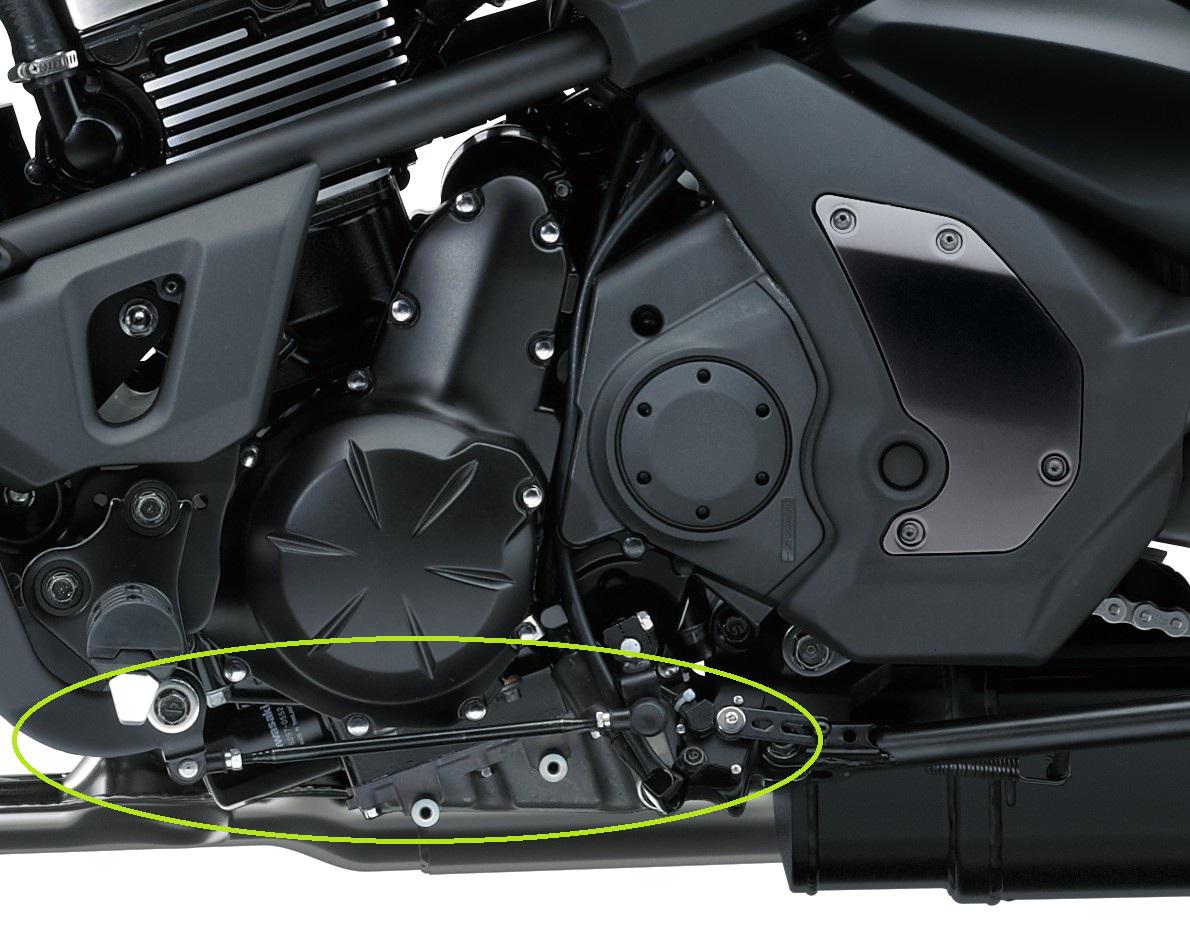

Extended Reach Tie Rod, 230mm. To mount left Vulcan S adjustable foot peg in the forward position (Extended Reach, 25mm more forward).
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
All required brackets and hardware included.
20cm (8") long and 23cm (9") wide.
The Passenger Luggage Rack installation requires 2 components:

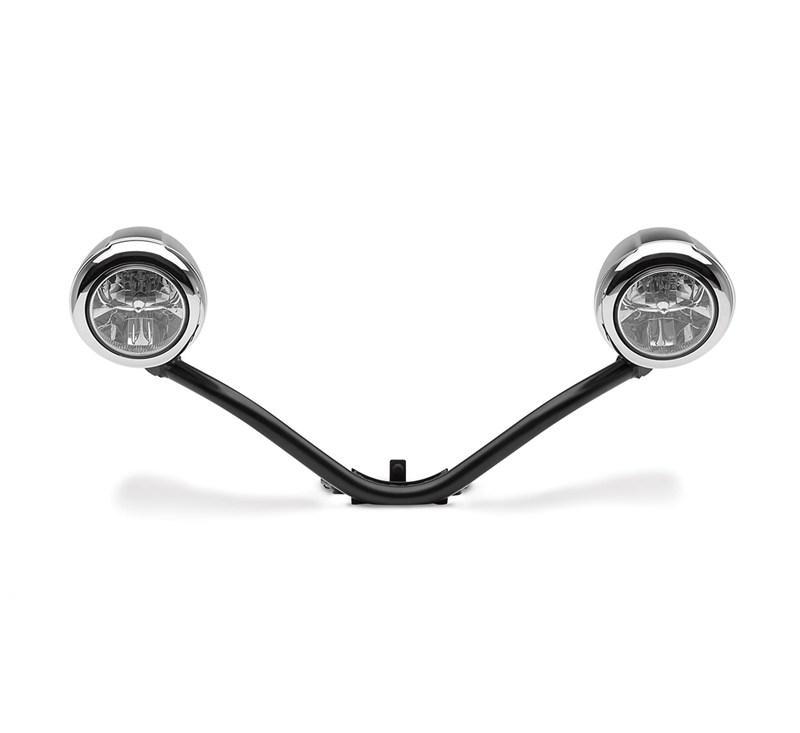

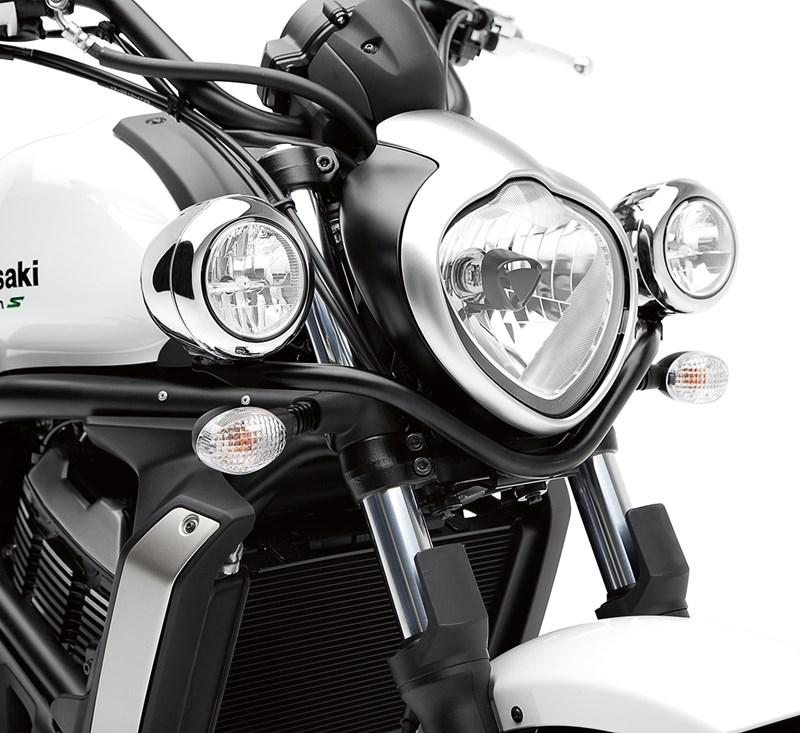

Metal bracket with LED spotlamps for increased visibility.
Bar available in Black and Chrome.
The Lightbar Kit consists of 2 components:
ERGO-FIT™ Reduced Reach.
Suggested for riders shorter than 170cm.
A combination of adjustable factory components and accessories reduce the reach to handlebars and footpegs for the best possible fit.

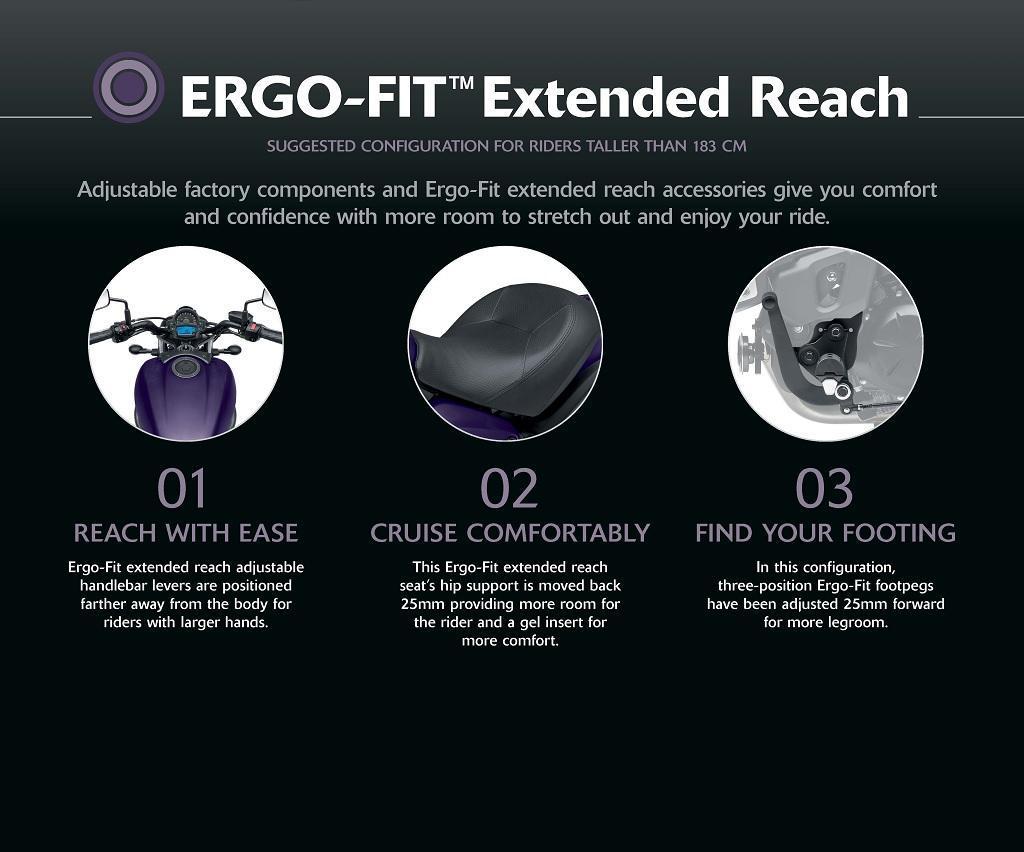

ERGO-FIT™ Extended Reach.
Suggested for riders taller than 183cm.
Adjustable factory components and Ergo-Fit extended reach accessories give you comfort and confidence with more room to stretch out and enjoy your ride.
Genuine Kawasaki Wheel Rim Tape Set for Vulcan S

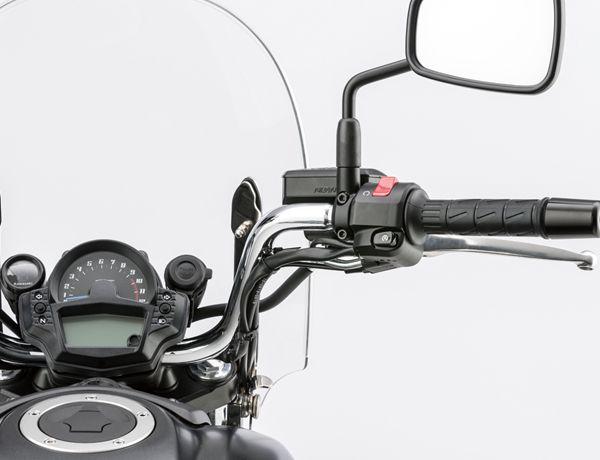

Chrome handlebar with standard dimensions for Vulcan S.
Chrome Fatbar-style handlebar with ends that are positioned more inward. Additionally this Easy-Reach handlebar effectively comes 36mm closer to the rider. Including cable ties and bolts.

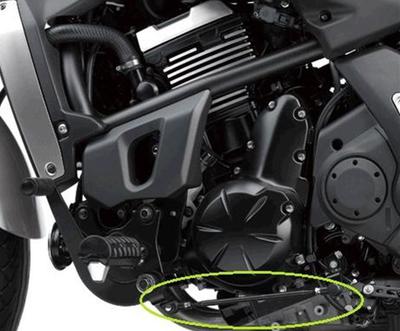

Reduced Reach Tie Rod, 180mm To mount left Vulcan S adjustable foot peg in the rearward position (Easy Reach, 25mm more rearwards)

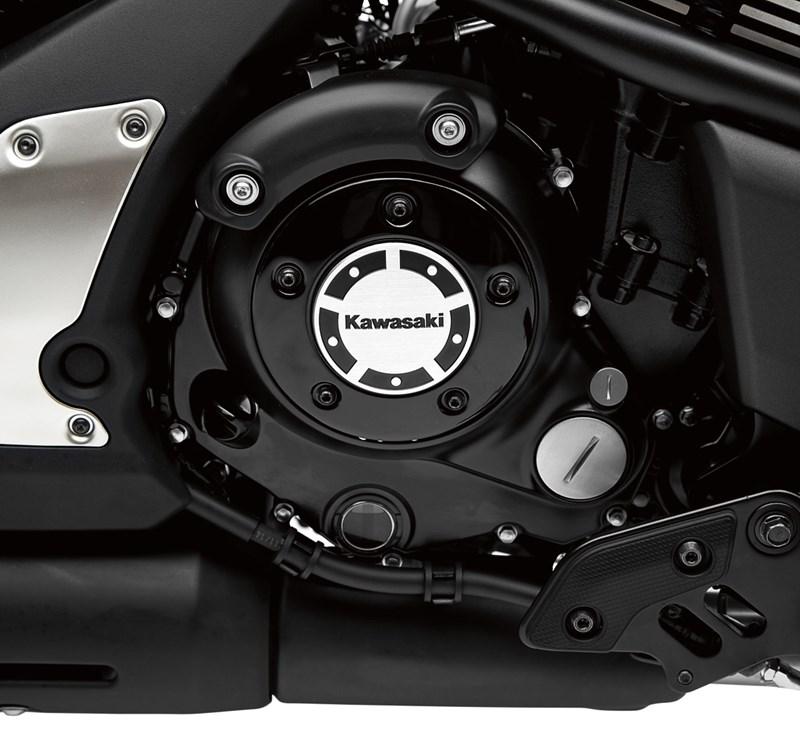

The Clutch Cover Emblem features an adhesive backed trim piece to make your clutch cover and engine look its best with a brushed aluminum finish.
Black Fatbar-style handlebar with ends that are positioned more inward. Additionally this Easy-Reach handlebar effectively comes 36mm closer to the rider. Including cable ties and bolts.
Comfortable extended reach front seat with gel insert, for taller riders. Brings rider up and ± 25mm more rearwards.
(Extended reach front gel seat must be combined with extended reach rear gel seat, K53001252C)
Comfortable extended reach rear seat designed to be combined with extended reach front seat.
Front section is adapted to create more room for rider.
Padding is thicker for increased comfort. Including bracket.
Extended passenger seat must be combined with extended reach rider seat

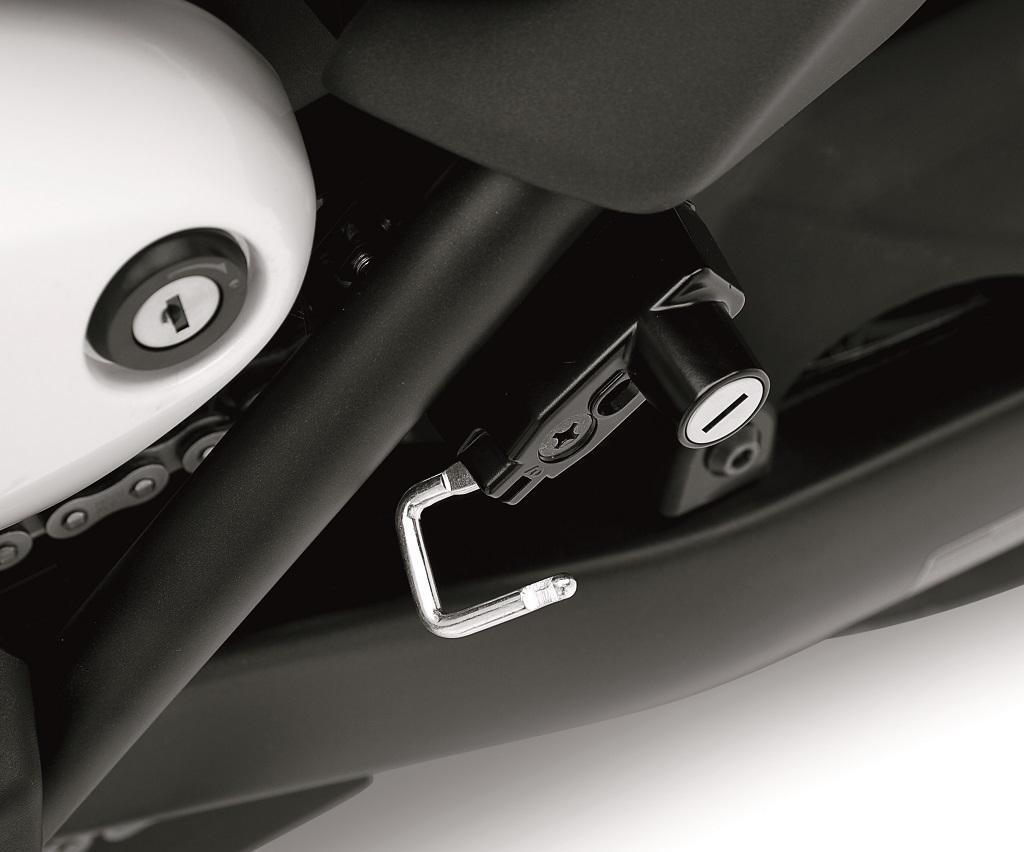

Lock your helmet securely and conveniently when you’re off the road

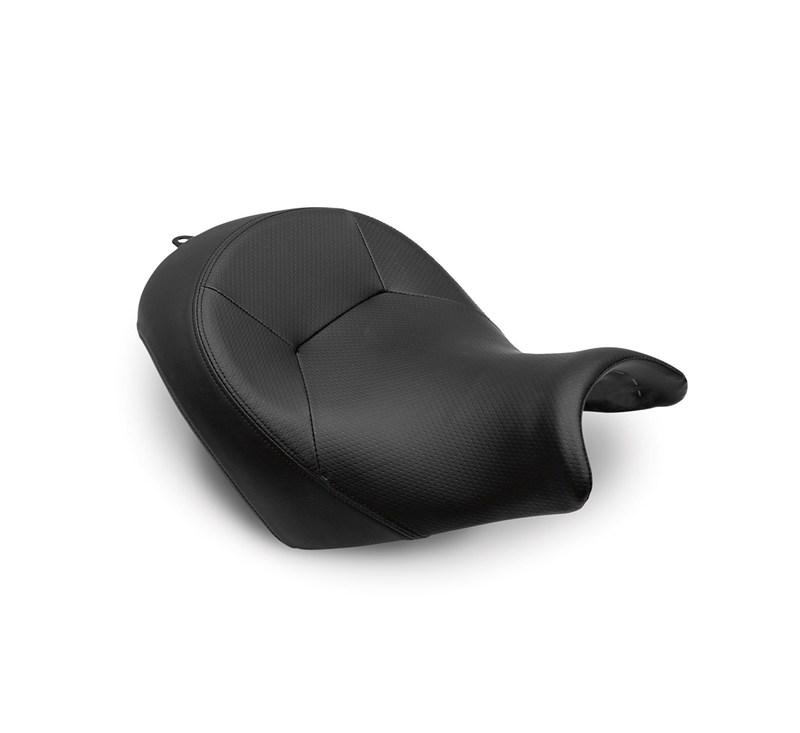

ERGO-FIT™ Easy-Reach seat that is 5mm lower and brings the rider ± 53mm closer to the handlebar. Additionally, the slimmer seat profile allows the rider to reach the ground even better.

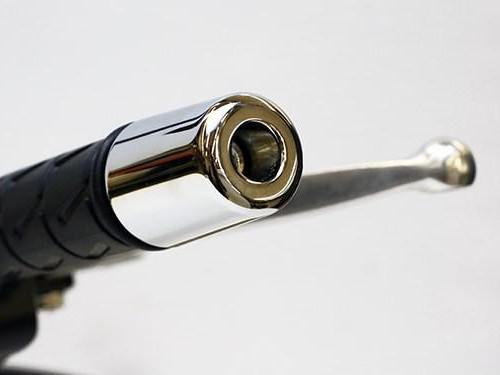

Stock handlebar end caps finished in chrome

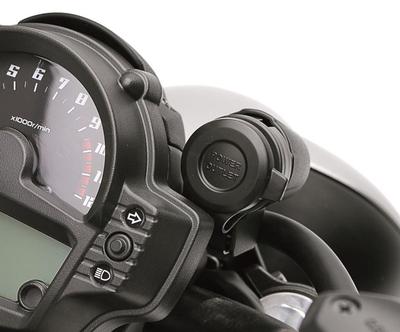

12 Volt DC power socket with bracket and cap for tailor made fitment to the Vulcan S instrument panel.
Requires additional relay.

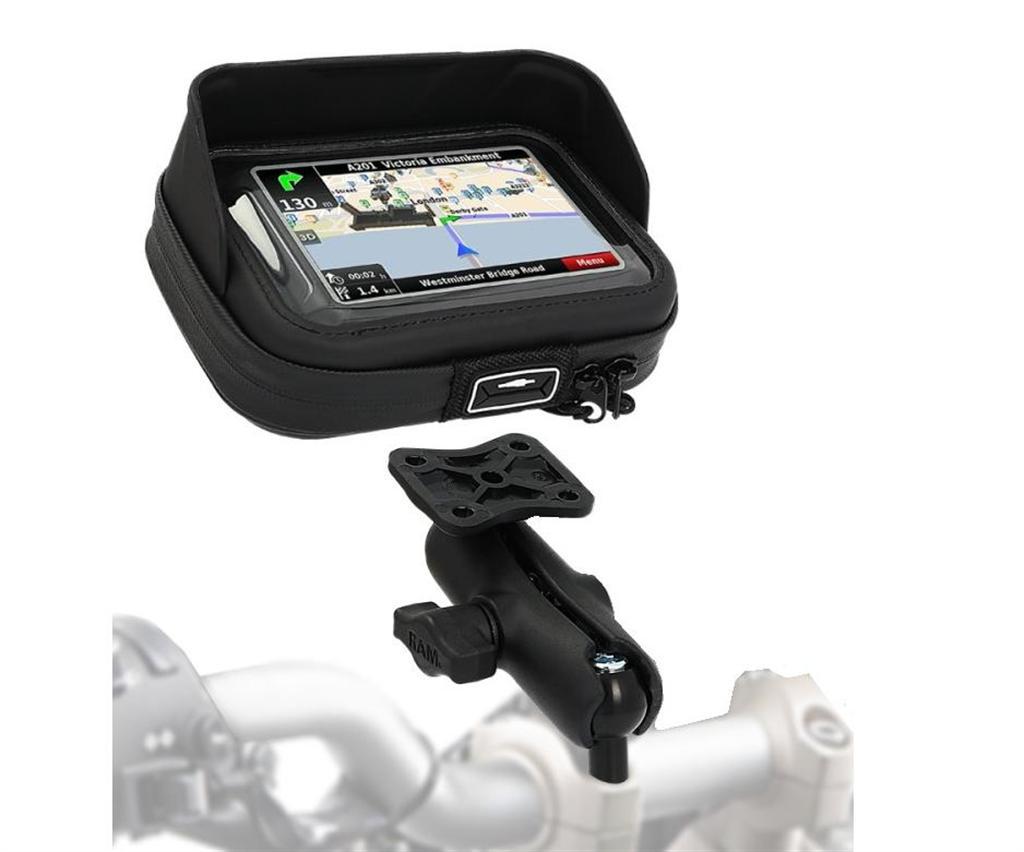

The universal GPS package allows various installation options without using additional accessories. Navigation system can be mounted in the bag, or directly to the system without bag. Mounting on mirror or handlebar (22,28-25,4mm), or to other mounting points with ball M6 or M8 and rotatable RAM-Arm. Splash proof navigation bag size M protects your GPS from the weather.
Included:

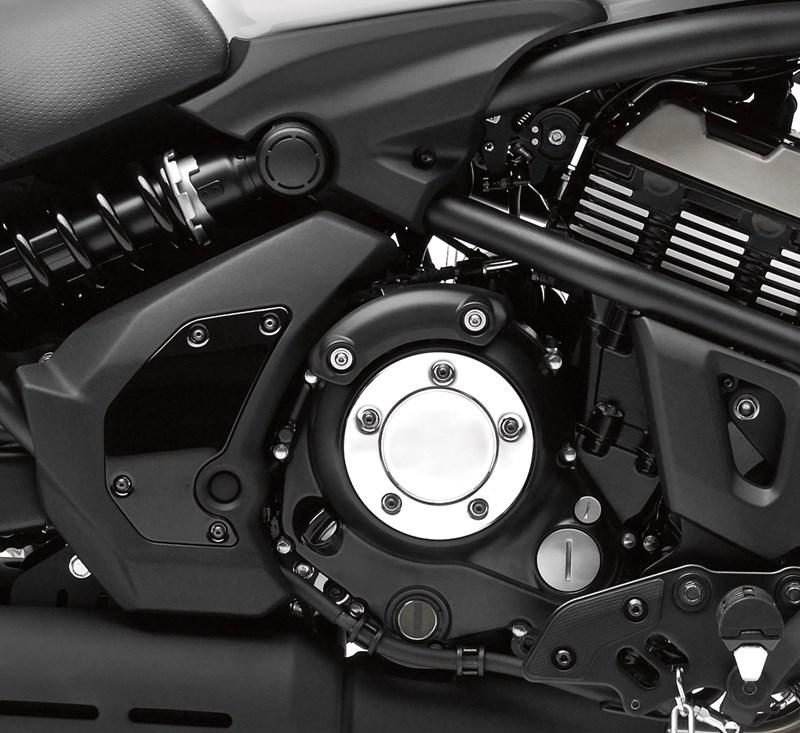

Stylish chrome Clutch Cover Plate adds style to the engine clutch cover of your Vulcan S motorcycle.

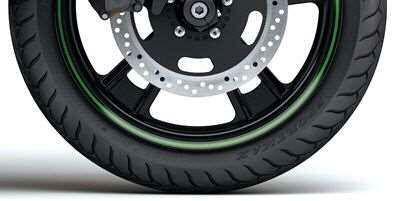

Genuine Kawasaki Wheel Rim Tape Set for Vulcan S

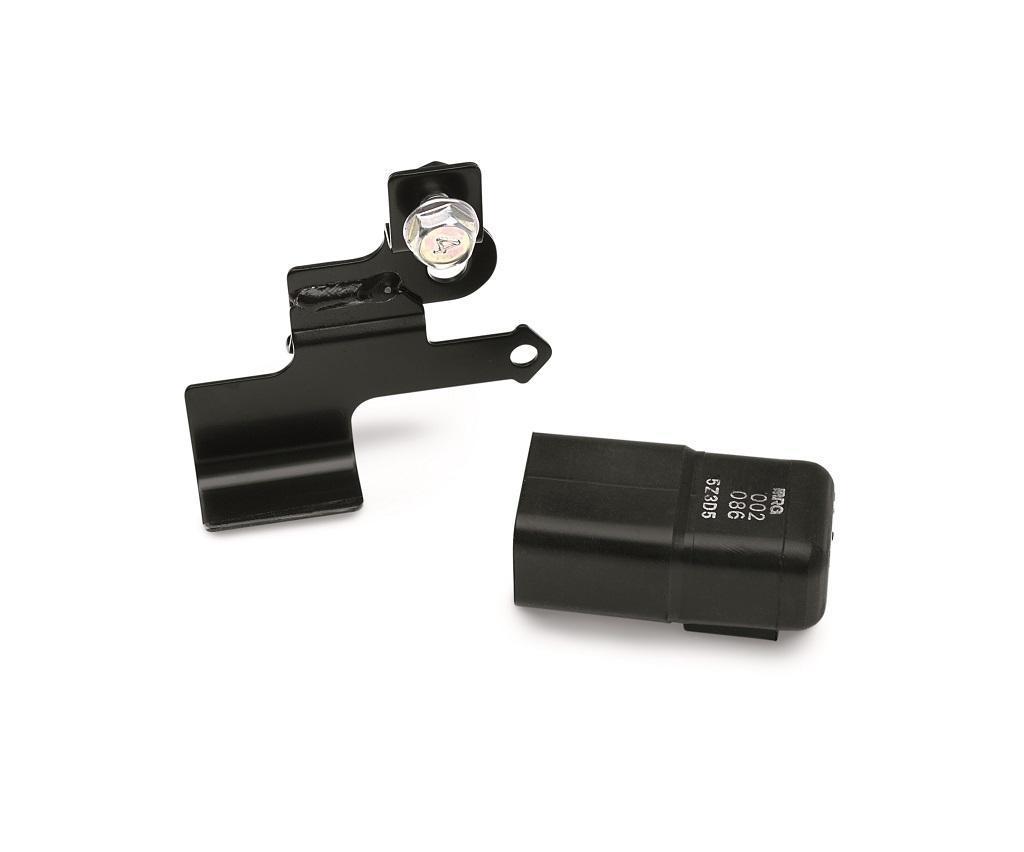

Relay kit for Vulcan S lightbar/sub lamp, 12V outlet, Gear position indicator or other electrical accessories.
Relay is needed only one time when multiple electrical accessories are fitted. (Only one Relay Kit required per Vulcan S)

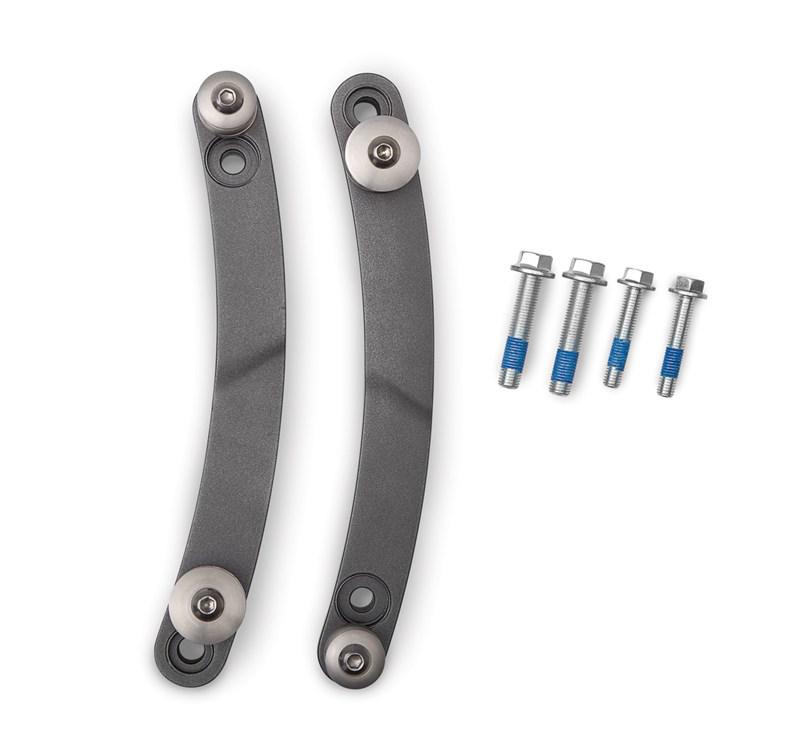

Purchase as a required component to mount KQR Large Windshield or KQR Medium Windshield sold separately. KQR mounting system allows for easy installation or removal of windshield once installed.

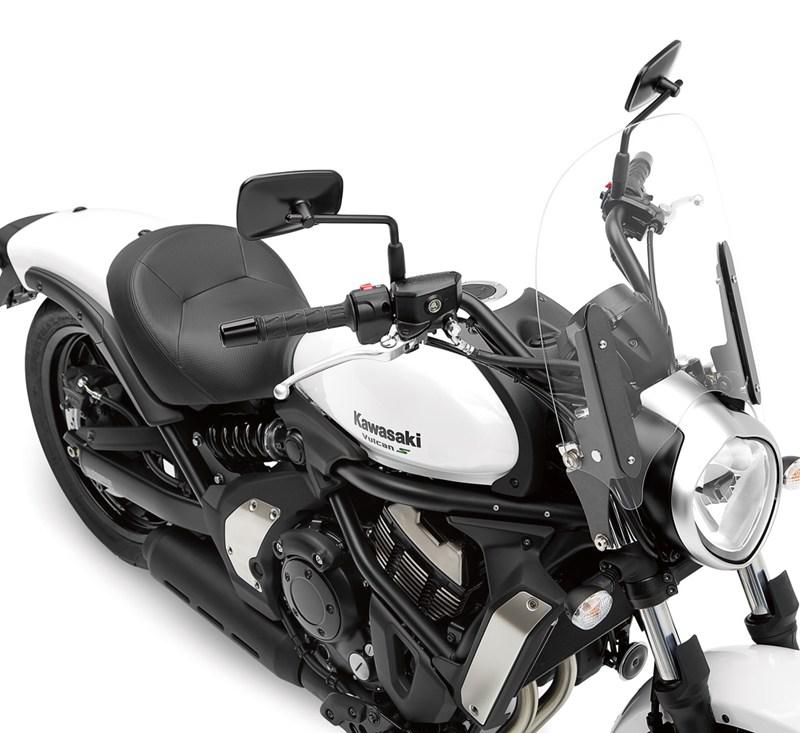

Medium Clear Windscreen for improved wind protection. Height 47 cm (effective 36 cm), width 39 cm.
Requires separately sold windscreen bracket set (Anthracite/Black) - 999940526B and front fork bracket set (Chrome) - 999940546 .
Medium height windscreen for improved comfort and wind protection.

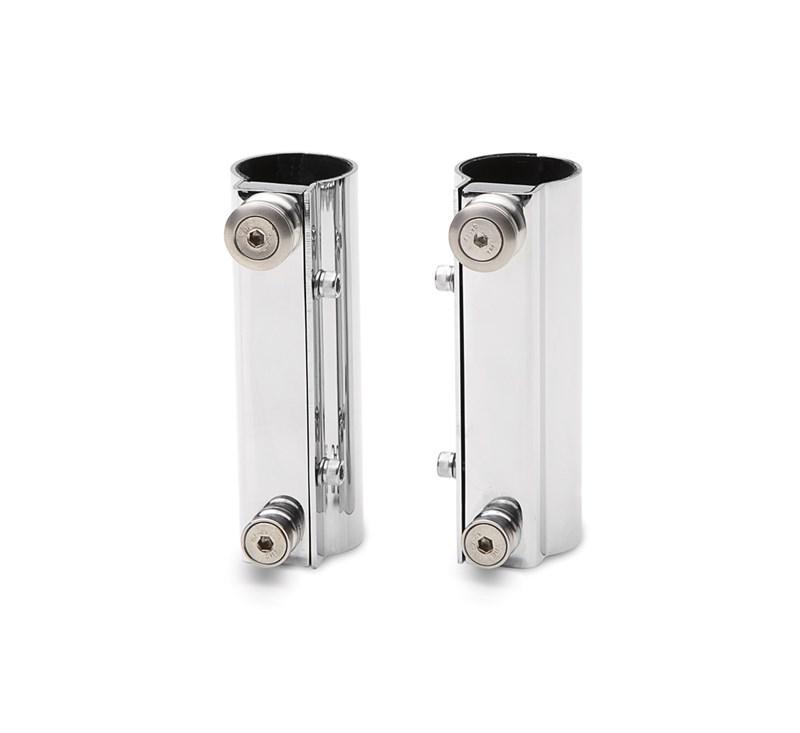

KQR Fork windshield bracket kit with durable chrome finish.
This KQR windshield mounting system can be fitted to the front fork without removing fork legs.

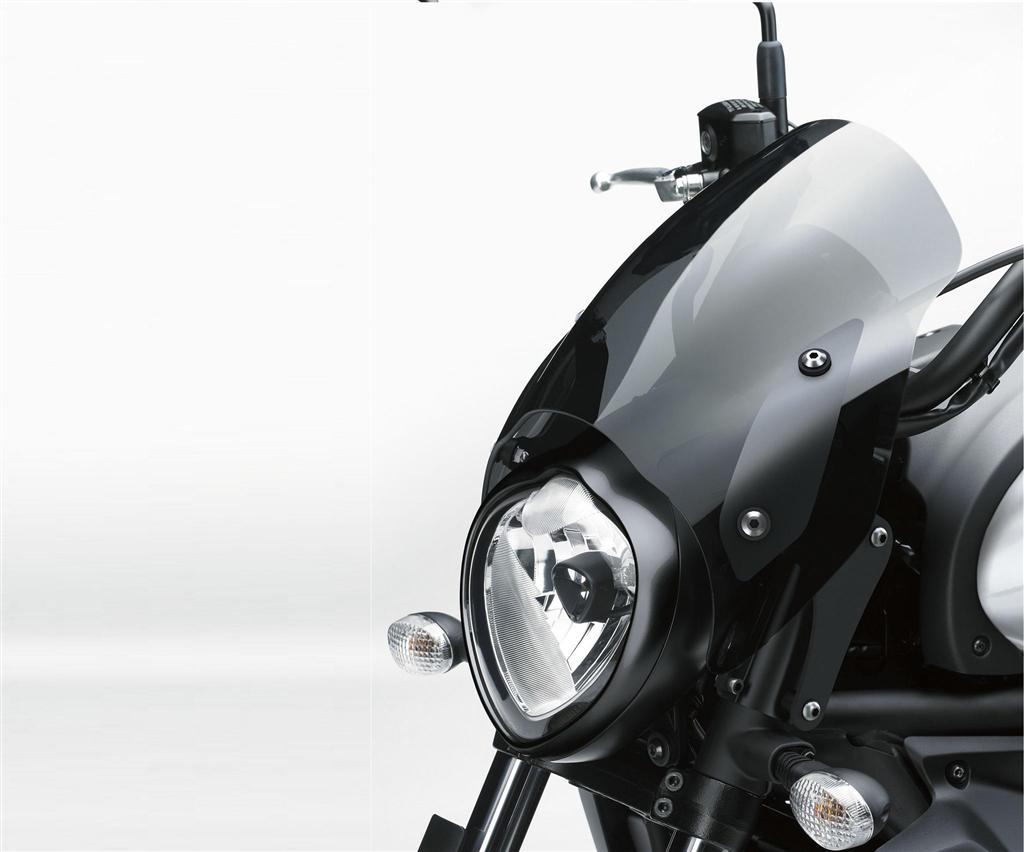

For increased wind deflection and enhanced rider comfort, install the Cafe Style Windscreen. The following components are required for proper mounting:
999940826 - Cafe Deflector Smoke (Fixed) (Requires bracket)
999940824 - Fork bracket for windshield (Black) (not included)
Ensure all components are correctly fitted to maintain stability and performance.

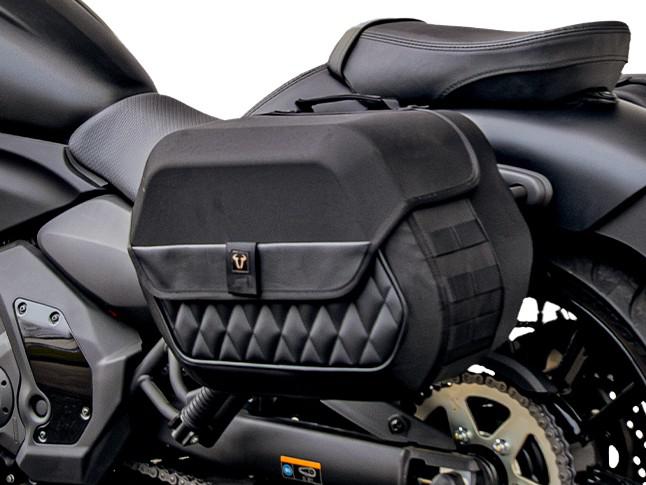

Keep your personal items secure on the road with saddlebags that complement the overall look of your bike. This black leather saddlebag set has reinforcements to keep the shape in all riding conditions. Durable water-resistant marine grade vinyl with genuine cow leather trim. An interior pocket keeps important papers and documents separate and protected. A magnetic clasp closure on the lid makes accessing your goods convenient. (Load 2.2kg per bag , Inner dimensions: L=33, H=26, D=13cm) Requires (KQR™) bracket kit and saddlebag supports (sold separately)
Stylish and rugged water-resistant nylon saddlebags. Reinforced molded foam body helps maintain shape even when empty.
Features integrated handgrips, zippered lids, and reflective piping.
Includes a set of two waterproof liners to protect cargo in wet weather.
Capacity: 2 × 11 L. Maximum load: 2 kg per bag.
Dimensions: L = 48 cm, H = 28 cm, W = 16 cm (19" × 11" × 6 1/2").
Requires Saddlebag Support Brackets with optional KQR Bracket Kit, both sold seperately.
Large Clear Windscreen
Height = 54 cm (effective = 43 cm), width = 45 cm

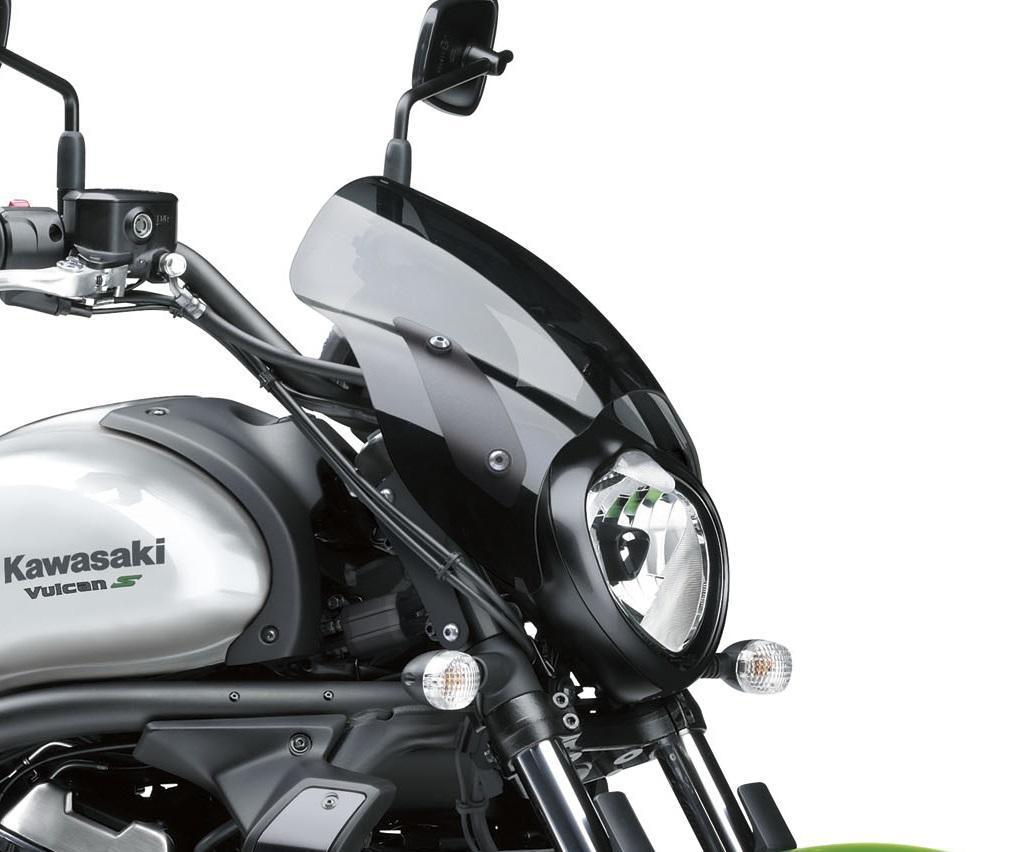

Café Style windscreen with KQR™ (Kawasaki Quick Release) for additional wind protection and greater comfort.
The following parts are required:
Café Style windscreen + bracket (black) - 999940736
KQR™ fork bracket (chrome-plated) - 999940546
The bracket for the windscreen with KQR™ (Kawasaki Quick Release) is only available in chrome.
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
Metal bracket with LED spotlamps with low power consumption. For increased visibility. Bar available in black. (Requires additional relay)

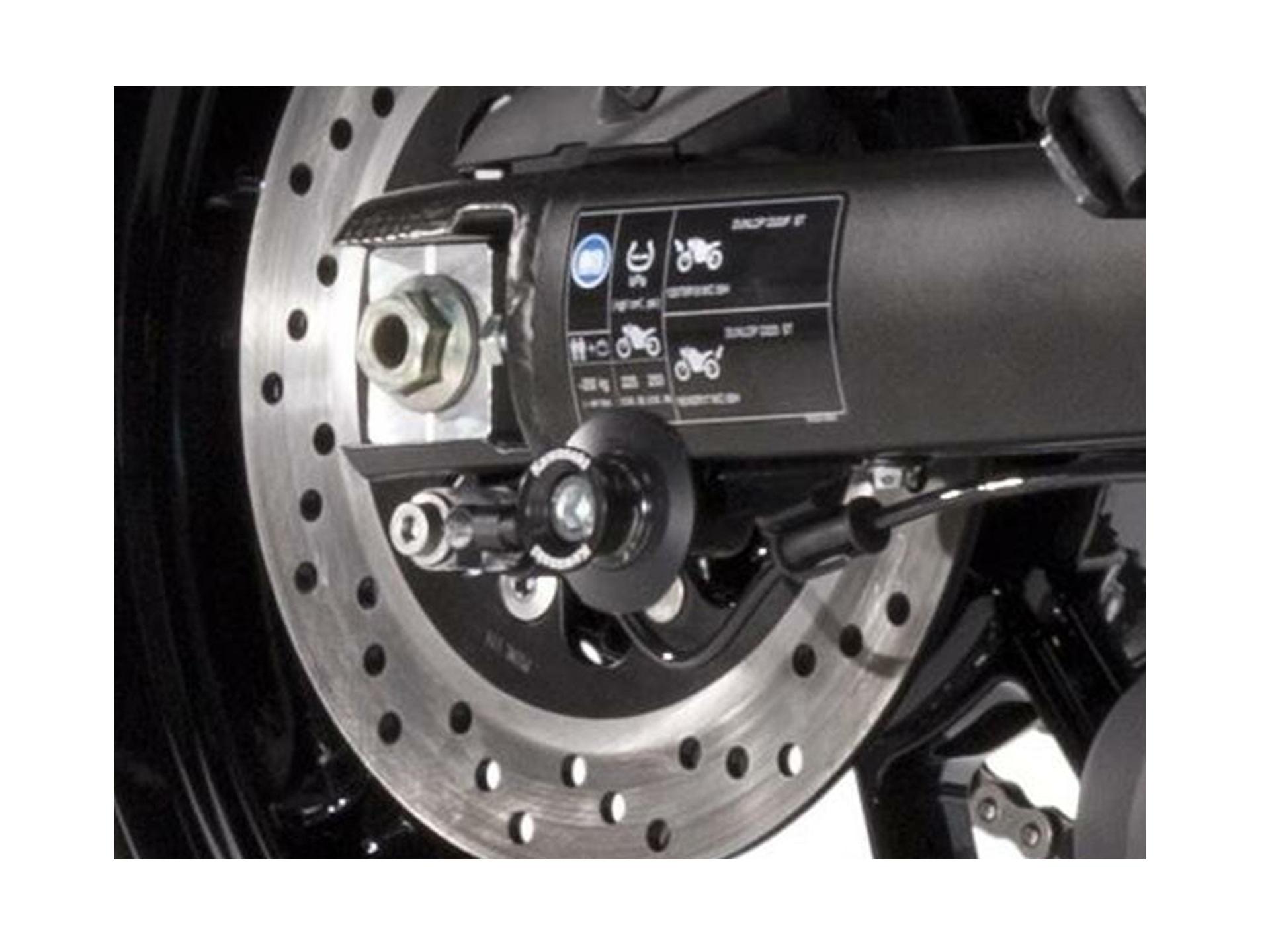

Mounting points for paddock stand, providing stability during maintenance or storage. The bobbins are securely attached to the motorcycle's swingarm, allowing for easy and safe lifting of the bike.
Made from strong Anti-tear Honeycomb ripstop fabric. Heat resistance till 120 degrees Celsius. Subtle branding.
100% Polyester. With multi usable (back)packing string bag.
(XL + top case cover has extra compartment that can be zipped open to make room for top case)
Solid, easy to install bracket for your navigation system.
Fits most common current navigation systems.
Made from strong Anti-tear Honeycomb ripstop fabric. Heat resistance till 120 degrees Celsius. Subtle branding.
100% Polyester. With multi usable (back)packing string bag.
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
Discover your next adventure
Ride challenge level. Plan windy and hilly roads
Discover the world's best curated riding routes, exclusively
Updates via Wi-Fi®. No computer needed
Discover, personalize and enjoy stunning riding routes with MyDrive
Compatible with Siri and Google Now™
Smartphone messages read aloud, hands-free calling
Lifetime* Worldwide Maps, TomTom Traffic and Services
Double the processing speed and five times faster start-up
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
Mounting points for paddock stand, providing stability during maintenance or storage. The bobbins are securely attached to the motorcycle's swingarm, allowing for easy and safe lifting of the bike.
