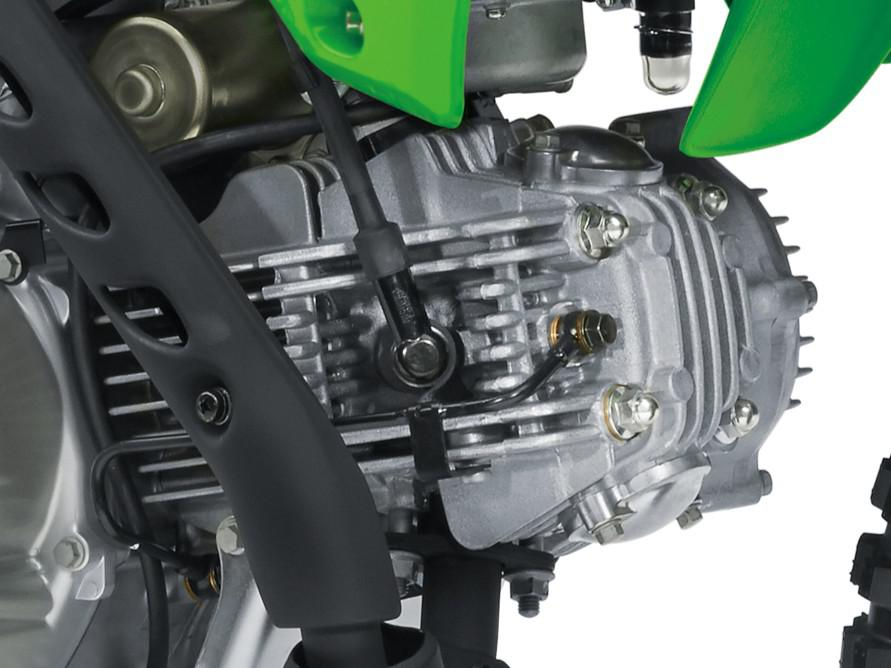

The 112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability.

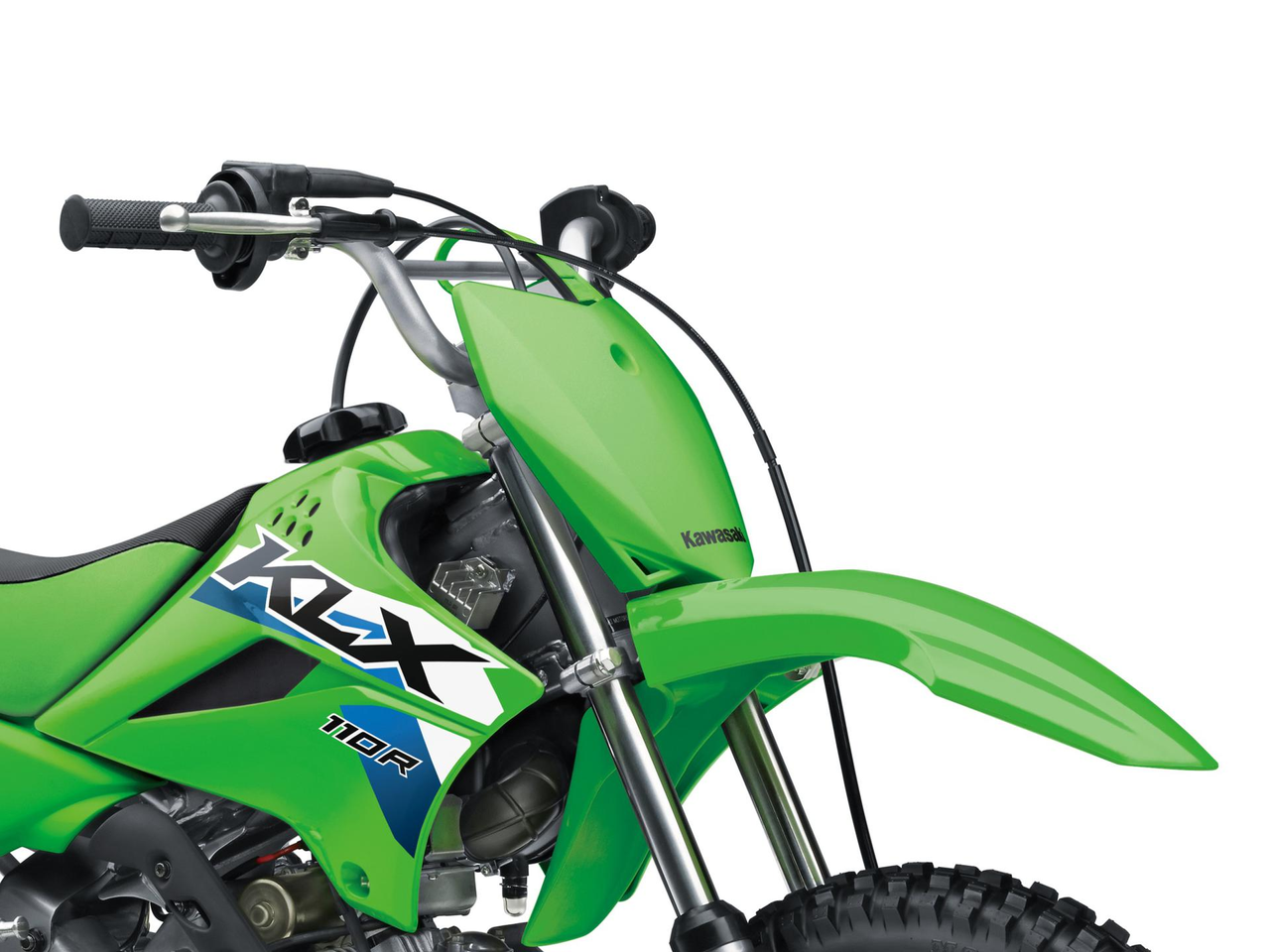

Shape of the shift pedal, brake pedal and kick start pedal offer easy operation and minimise unintended actuation. Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.
| Motortype | Luftafkølet, 4-takts enkelt-cylindret |
|---|---|
| Kompressionsforhold | 9.5:1 |
| Ventilsystem | SOHC, 2 ventiler |
| Boring x slaglængde | 53.0 x 50.6 mm |
| Slagvolumen | 112 cm³ |
| Brændstofsystem | Karburator |
| Smøring | Tvangssmørring, vådsumpsmørring |
| Startersystem | Elektrisk- og kickstarter |
| Tændingssystem | Digital |

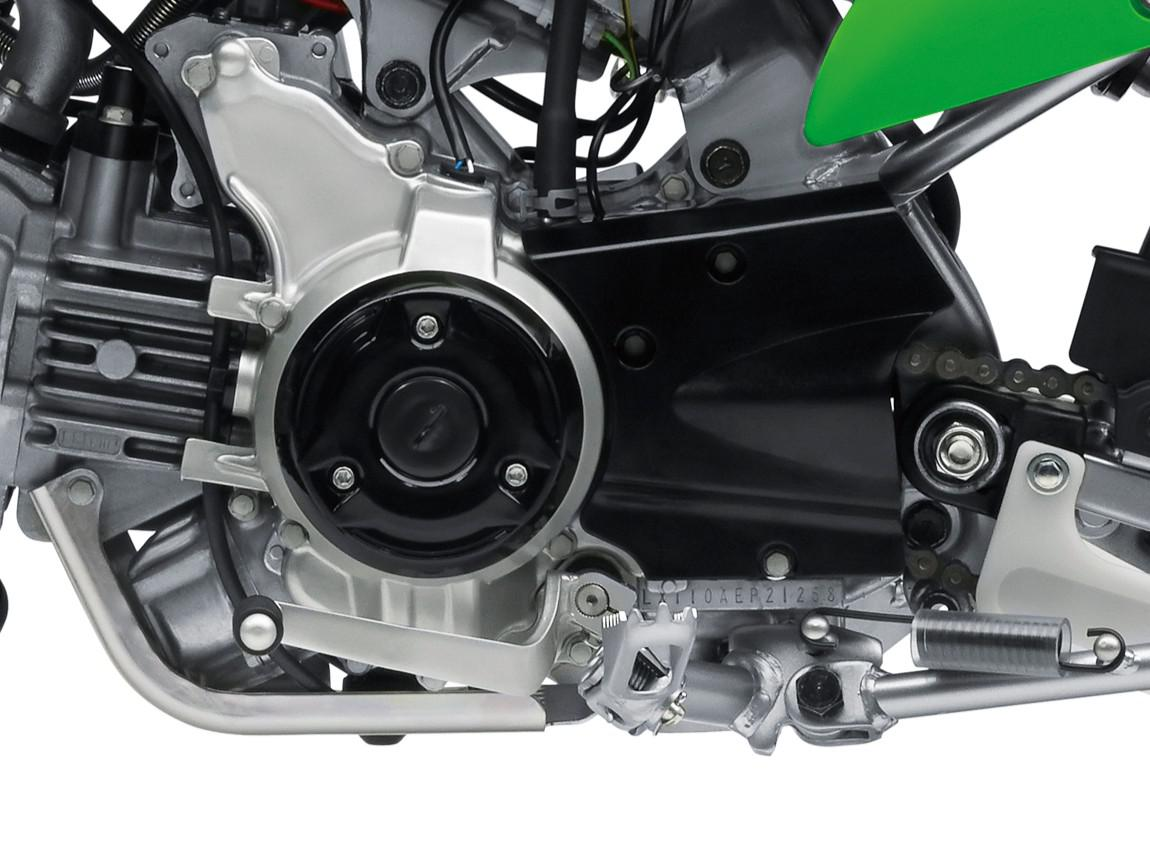

| Gear | 4-trins |
|---|---|
| Kobling | Centrifugal, våd multiskive |
| Primær udveksling | 3.409 (75/22) |
| Gearing 1. | 3.000 (36/12) |
| Gearing 2. | 1.938 (31/16) |
| Gearing 3. | 1.350 (27/20) |
| Gearing 4. | 1.087 (25/23) |
| Sekundær transmission | Kæde |
| Sekundær udveksling | 2.923 (38/13) |
| Stel type | Rygradsstel, stål |
|---|---|
| Efterløb | 50 mm |
| Vandring, forhjul | 110 mm |
| Vandring, baghjul | 110 mm |
| Dæk, forhjul | 2.50-14 4PR |
| Dæk, baghjul | 3.00-12 4PR |
| L x B x H | 1,560 x 650 x 955 mm |
| Styrudslag V/H | 45° / 45° |
| Akselafstand | 1,075 mm |
| Frihøjde | 215 mm |
| Tankindhold | 3.6 liter |
| Sædehøjde | 680 mm |
| Køreklar vægt* | 76 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 72 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Bremser, forhjul | Tromle |
|---|---|
| Forbremse, diameter | Ø 90 mm |
| Bremser, baghjul | Tromle |
| Bagbremse, diameter | Ø 110 mm |
| Affjedring, front | Teleskop forgaffel |
| Diameter på forreste affjedring | Ø 30 mm |
| Affjedring, bag | Enkelt støddæmpning |
